Dia 35mm BLDC Servo Motor hollow shaft with encoder and driver

$36.00

Specification

RMD-S2806
Chat Online

RMD-S2806 BLDC Servo Motor

RMD-L series Servo motor, which is the upgrade version of RMD-S (Starter version). RMD-L encoder and driver is open RS485 protocol, the command to control the motor is open. The user can design his own controller to control the motor.
DM encoder and driver is compatible with Alexmos SimpleBGC, the user can use Alexmos SimpleBGC controller to control the motor.

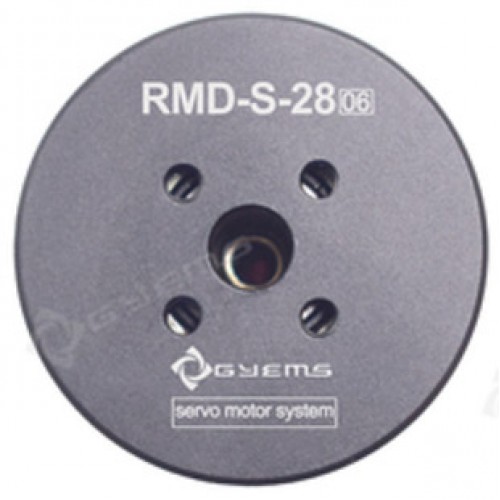

RMD-S2806 BLDC Servo

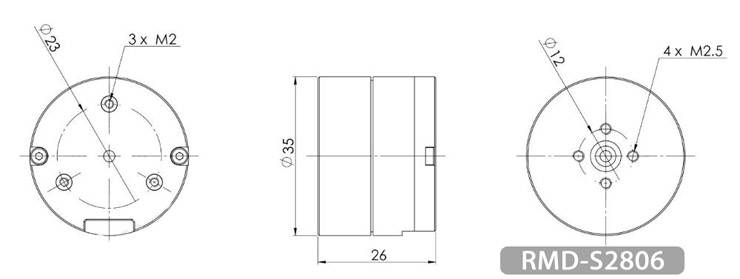

RMD-S2806 or RMD-S2805 Specifications
Weight 63g
Motor Dia*L 35*26mm
Slots&Poles 12N14P
Motor Input Voltage 10.5-12.6V
Resistance 4.5Ohms
Drive board sinewave driver
Drive board input voltage 10.5-12.6V
Max current 1.2A
Hollow shaft Dia 6.5mm
Motor mounting hole M2*23mm
Max Payload 0.2Kg
