Quality 440C SUS MGN9 linear rail with carriage

Quality 440C SUS MGN9 linear rail with carriage

SS_MGN9-1C-150

SS_MGN9-1C-200

SS_MGN9-1C-210

SS_MGN9-1C-250

SS_MGN9-1C-300

SS_MGN9-1C-400

SS_MGN9-1H-150

SS_MGN9-1H-175

SS_MGN9-1H-200

SS_MGN9-1H-250

SS_MGN9-1H-300

SS_MGN9-1H-310

SS_MGN9-1H-350

SS_MGN9-1H-370

SS_MGN9-1H-375

SS_MGN9-1H-400

SS_MGN9-1H-500

SS_MGN9-1H-600

SS_MGN9-1H-650

SS_MGN9-1H-470

Size:: MGN9-1C-150
Weight:: 0.100Kgs

Size:: MGN9-1C-200
Weight:: 0.120Kgs

Size:: MGN9-1C-210
Weight:: 0.120Kgs

Size:: MGN9-1C-250
Weight:: 0.140Kgs

Size:: MGN9-1C-300
Weight:: 0.160Kgs

Size:: MGN9-1C-400
Weight:: 0.200Kgs

Size:: MGN9-1H-150
Color:: Long Carriage
Weight:: 0.150Kgs

Size:: MGN9-1H-175
Color:: Long Carriage
Weight:: 0.150Kgs

Size:: MGN9-1H-200
Color:: Long Carriage
Weight:: 0.150Kgs

Size:: MGN9-1H-250
Color:: Long Carriage
Weight:: 0.150Kgs

Size:: MGN9-1H-300
Color:: Long Carriage
Weight:: 0.160Kgs

Size:: MGN9-1H-310
Color:: Long Carriage
Weight:: 0.250Kgs

Size:: MGN9-1H-350
Color:: Long Carriage
Weight:: 0.180Kgs

Size:: MGN9-1H-370
Color:: Long Carriage
Weight:: 0.200Kgs

Size:: MGN9-1H-375
Color:: Long Carriage
Weight:: 0.300Kgs

Size:: MGN9-1H-400
Color:: Long Carriage
Weight:: 0.200Kgs

Size:: MGN9-1H-500
Color:: Long Carriage
Weight:: 0.250Kgs

Size:: MGN9-1H-600
Color:: Long Carriage
Weight:: 0.300Kgs

Size:: MGN9-1H-650
Color:: Long Carriage
Weight:: 0.350Kgs

Size:: MGN9-1H-470
Color:: Long Body Carriage
Weight:: 0.200Kgs

$12.00

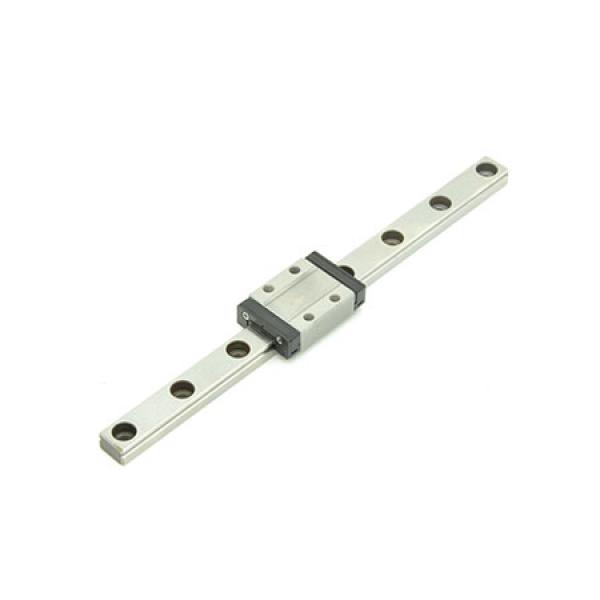

440C SUS MGN9 Linear Rail and Carriage

MGN9 linear rails with a standard carriage
Material: stainless steel 150mm, 200mm, 250mm, 300mm, 400mm long MGN9 linear rail
1 piece of MGN9 standard carriage 30mm long, hole center distance 15*10mm.
200mm rail with carriage 16USD, 250mm linear rail n carriage 18USD, 300mm rail with carriage 20USD, 400mm rail n carriage set 23USD
New arrival: MGN9-1H-300, MGN9-1H-350 MGN9 L350mm linear rail with long body carriage
Stainless Steel Linear Rails
MGN9 linear rail
The linear rail is a quality substitute for IKO linear rail.
End to end hole center, long body 40.5mm carriage hole center distance left to right 15mm and front to rear 16mm, other CUSTOMIZE requests please write us.
Note: the thickness of the stainless steel linear rail is 6mm which is different from HIWIN standard linear rail of 6.5mm.
