NEMA11 lead screw stepper motor linear module

$54.00

Specification

DG281-50
DG281-100
DG281-150
DG281-200
DG281-250
Chat Online

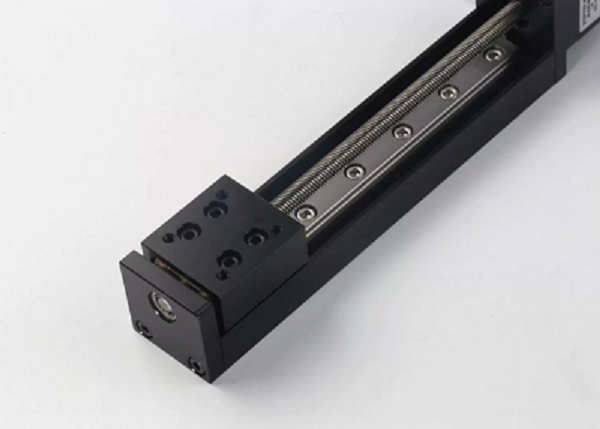

NEMA 11 stepper motorized linear module

NEMA 11 30mm body stepper motor
Two-phase bipolar 0.6A rated current
Tr6*1, Tr6*2, Tr6*4, Tr6*6, or Tr6*12 lead screw
PS: Tr6*2 default version will be shipped if there is No note while ordering.
GCr15 MGN9 made in China rail n carriage
Speed 0.1-120mm/s and loading 2.5Kgs below
Working length 50mm, 100mm, 150mm, 200mm in stock.

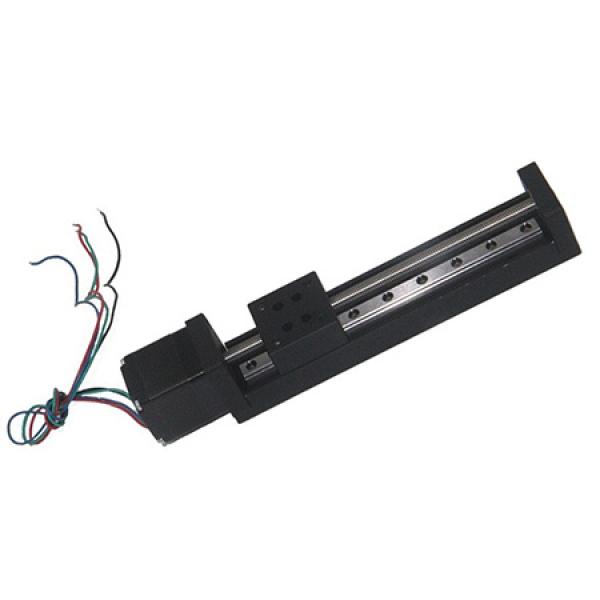

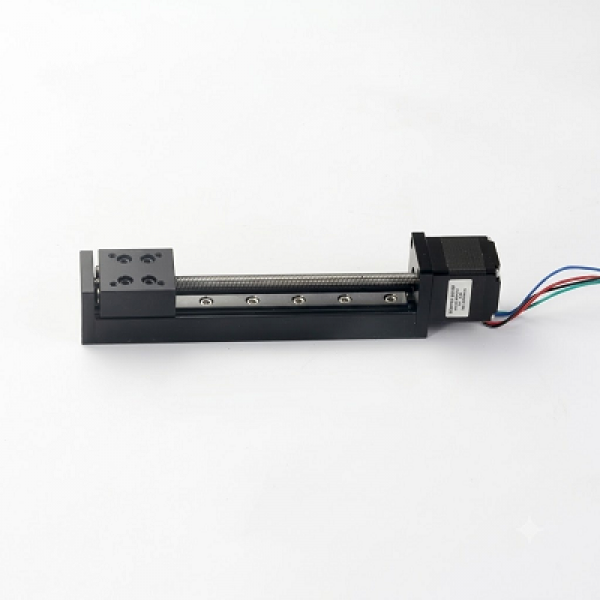

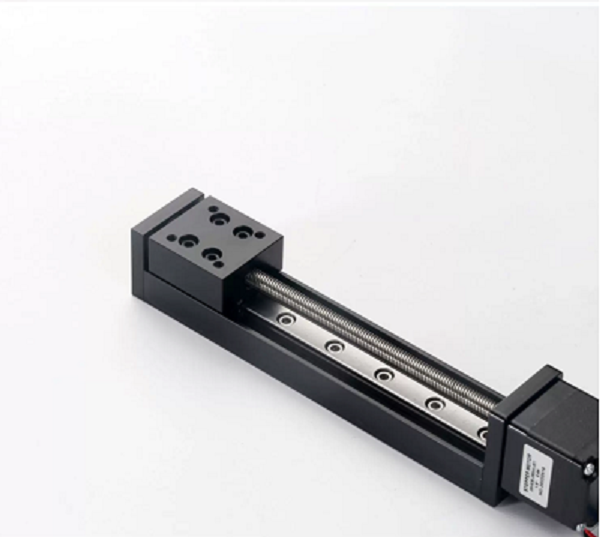

NEMA11 stepper motorized linear module

Application

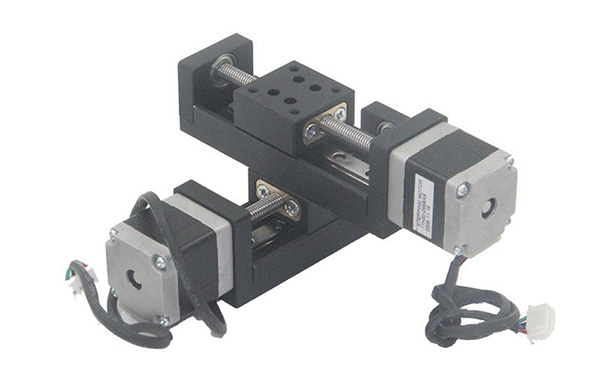

Linear Stage
