20 captive or non-captive PM linear stepper motor

20 captive or non-captive PM linear stepper motor

NC20-BYZ

NC20-BYZ-5V

NC20-BYZ-110

C20-BYZ

Size:: 12V_Non-captive
Color:: 80mm lead screw
Weight:: 0.080Kgs

Size:: 5V 7.5D Non-captive
Color:: 110mm lead screw
Weight:: 0.300Kgs

Size:: 12V_Non-captive
Color:: 110mm lead screw
Weight:: 0.300Kgs

Size:: 12V_Captive
Color:: Max 9mm stroke
Weight:: 0.080Kgs

$10.00

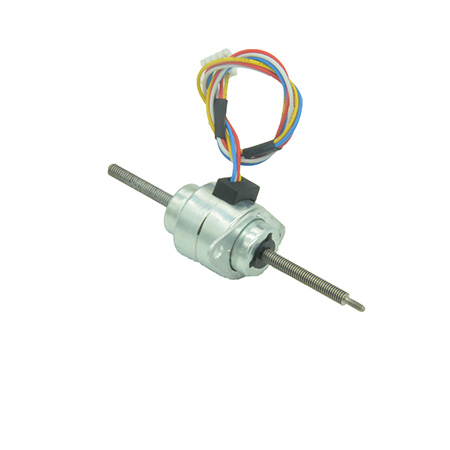

Non-captive PM Linear Stepper Motor

NC20-BYZ is 12V DC less than 300mA phase current non-captive pm linear stepper motor
Step angle 15 degree and step increment 0.0254mm, pull force 10N at 200PPS.

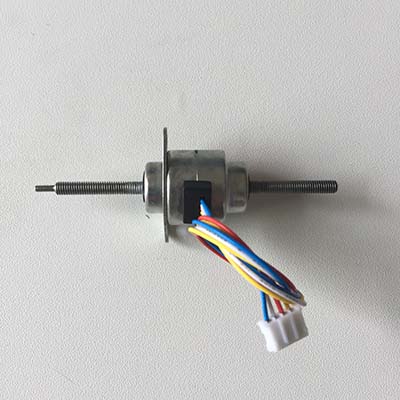

Non-captive Linear Stepper
NC20-BYZ-5V is 5V DC less than 700mA phase current Non-captive size nema8 20mm pm linear stepper motor
Step angle 7.5 degree and step increment 0.0125mm and the max stroke 80mm
Other options of Non-captive NEMA8 pm linear stepper motor please leave us message or email us for query.

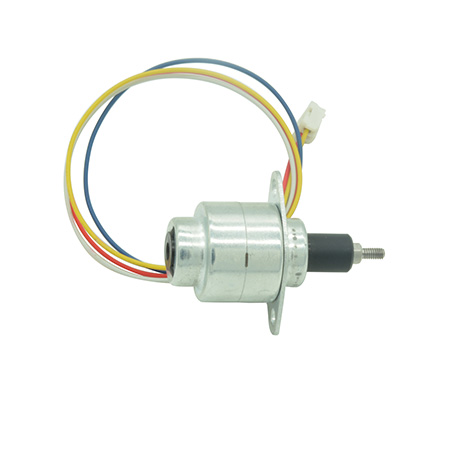

Captive PM Linear Stepper Motor

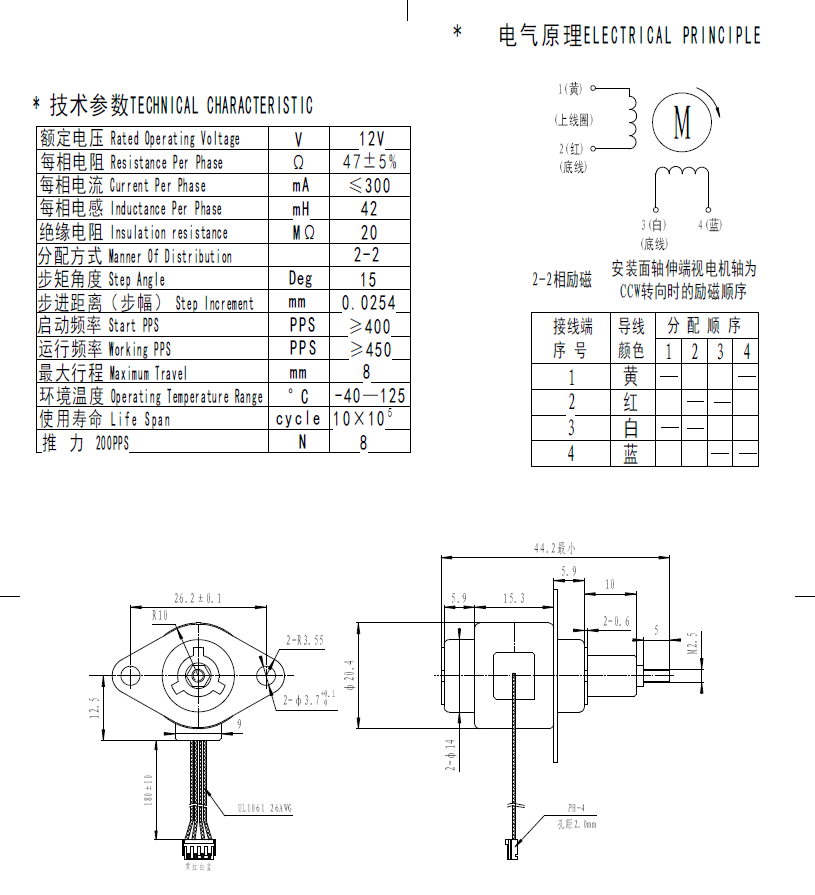

C20-BYZ is captive nema8 pm linear stepper motor
12V DC phase current less than 300mA and step increment 0.0254mm
Max stroke 8mm, 8N pull force at speed 200PPS.
NEMA8 Captive Linear Stepper Motor
