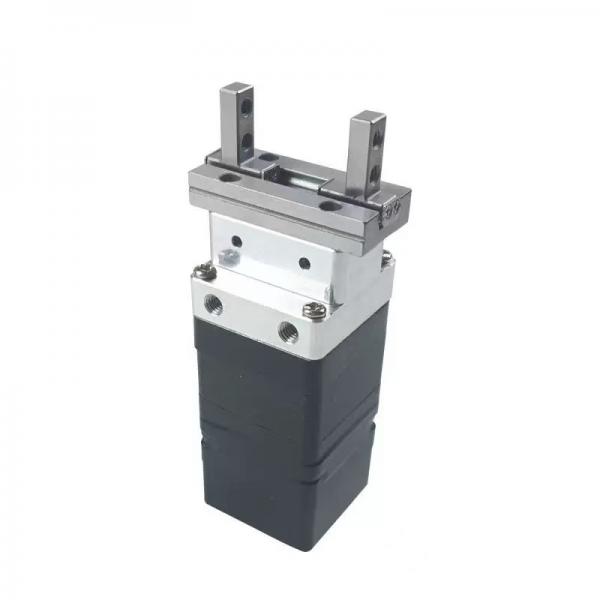

Compact Stepper Motor Electric Gripper with Adaptive Stroke
Designed for precision and reliability in automated processes, this compact electric gripper finger offers exceptional performance for delicate and precise handling tasks. Featuring an adaptive stroke and powered by a high-precision stepper motor, it's ideal for a wide range of applications requiring accurate positioning and controlled gripping force.
Key Features:
Adaptive 8mm Opening/Closing Stroke: Provides flexible and precise control over the gripping range, suitable for various object sizes and shapes.
High-Precision Stepper Motor (28-type): Ensures accurate and repeatable positioning, crucial for sensitive automation tasks.
Robust Clamping Force: Capable of a strong 1500g (1.5kg) gripping force, suitable for secure handling of components.
IO Communication Control: Seamlessly integrates into existing automation systems via standard IO communication for easy implementation and control.

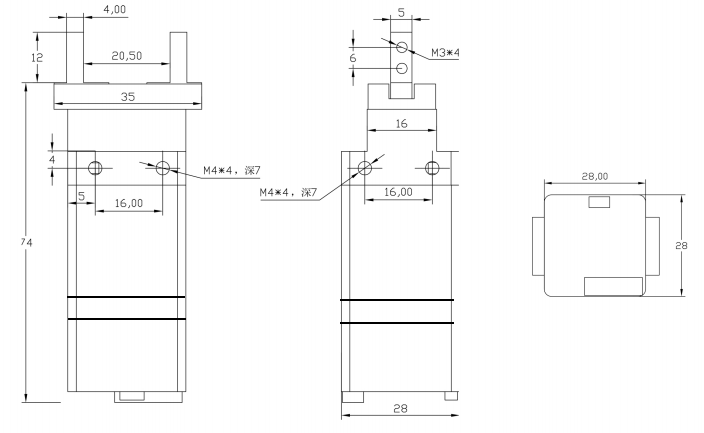

Compact and Lightweight Design: With a total weight of just 189g and a compact form factor (as per detailed dimensions), it's easy to integrate into space-constrained environments.
Wide Operating Temperature Range: Functions reliably in environments from 5℃ to 60℃, accommodating various industrial settings.
Standard DC24V Power Supply: Compatible with common industrial power systems.
Application Cases:
3C Automation: Ideal for automated assembly, handling, and placement of small electronic components.
3C Semiconductor Gripping: Perfect for the precise picking and placing of delicate semiconductor parts.
Glass Clamping/Gripping: Offers gentle yet firm handling of fragile materials like glass, minimizing the risk of damage.
Technical Specifications:
Model: 28MHZ2-10A-8
Voltage: DC24V
Stroke: 8mm (Opening/Closing Stroke)
Control Method: IO Communication
Motor: NEMA 14 28 Stepper Motor
Weight: 189g
Clamping Force: 1500g
Operating Temperature: 5-60℃

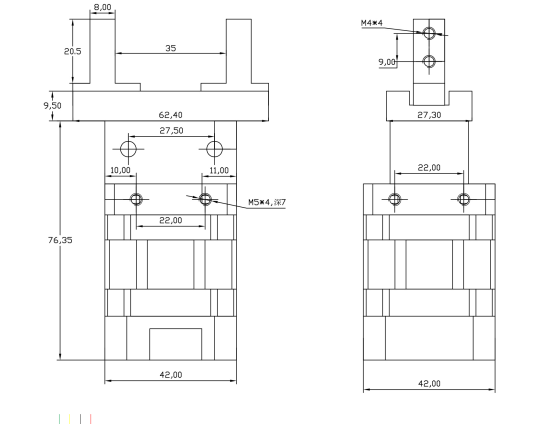

Technical Specifications:
Model: 42MHZ2-20B-18
Voltage: DC24V
Stroke: 18mm
Motor: 42 Stepper
Weight: 450g
Clamping Force: Approx. 5KG
Operating Temperature: 5-60℃
Control: IO Control (NPN Default)
