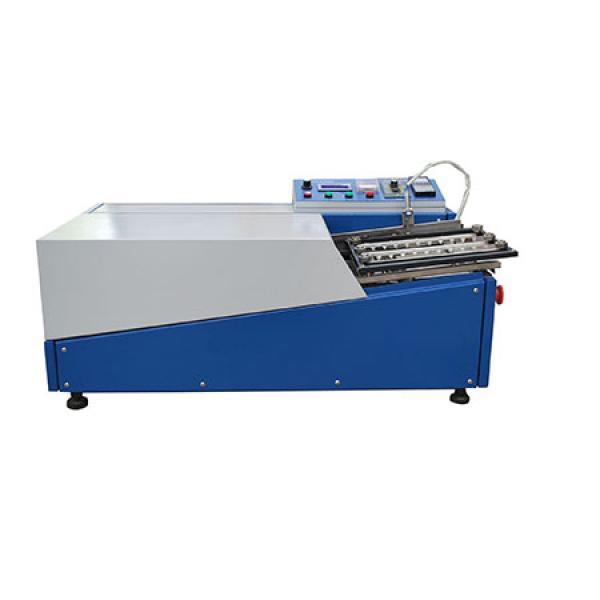

Desktop single wave soldering TB680

$4000.00

Specification

TB680
Chat Online

Desktop Wave Soldering

Introduction
TB680 is aiming at the practical status of the current soldering technology inland. It occupies the vacancy of the small automatic wave soldering inland. It adapts to the research and production in the research center, war industry, middle and small-sized corporations, small private corporations, and other electronic production companies. The whole machine is a desk-type. The reasonable frame takes up little room. It has complete functions and it is cheap, however energy-saving with high efficiency. Besides TB680 is easy to operate and reliable in soldering so that it could be widely used, especially suitable for the small and middle amount of production. TB680 could be the best device to replace the soldering iron by hand and the dip-soldering with the tin pan.
Compared with bigger ones, TB680 consumes less energy. Quickly tin melting, easy to operate, simple to repair as well as maintain, automatic self-protection.
Electric control is designed assembled. The soldering tin temp, conveying speed, the height of the crest, preheating time, and so on can be all adjusted. Digital display for the temperature of the soldering tin. It is just an ideal device for producing small batch and developing new products.
Features
1. High agility: it is convenient for TB680 to control every soldering technical parameter and high quality could be ensured.
2. Digital display of soldering temperature.
3. High reliability: high-temperature sintering heating element make the machine perform steady and reliable.
4. Widely used: TB680 can replace brand iron soldering and soldering device in the middle and little batch of production. It can satisfy every requirement of soldering production.
5. High efficiency: Productivity would be advanced.
6. Reasonable price, long life
7.Small size and power consumption. It meets the requirements for the production in the laboratory and factory.

The max power consumption 3Kw
Power supply 220v 50Hz
Solder pot capacity 37Kg
PCB doable L*W (mm) 200*270mm (Max)
Temperature range 200-300℃
Preheating temperature 90-130℃
Wave height range 5-10mm
Melting time 60min
Spray working mode Froth

Desktop Wave Soldering
