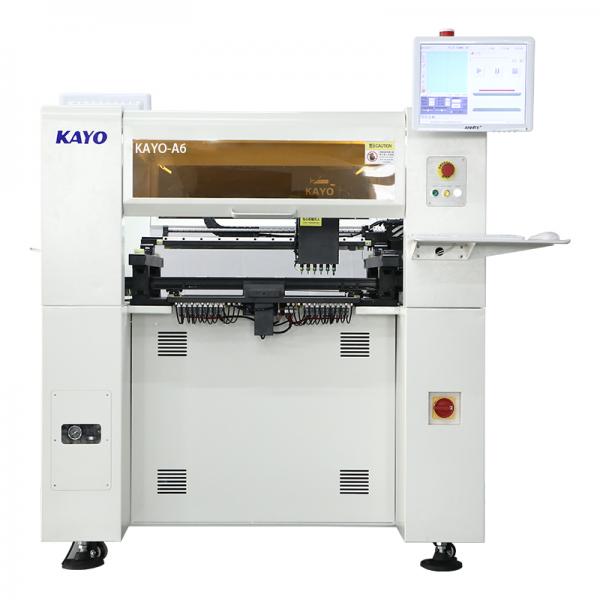

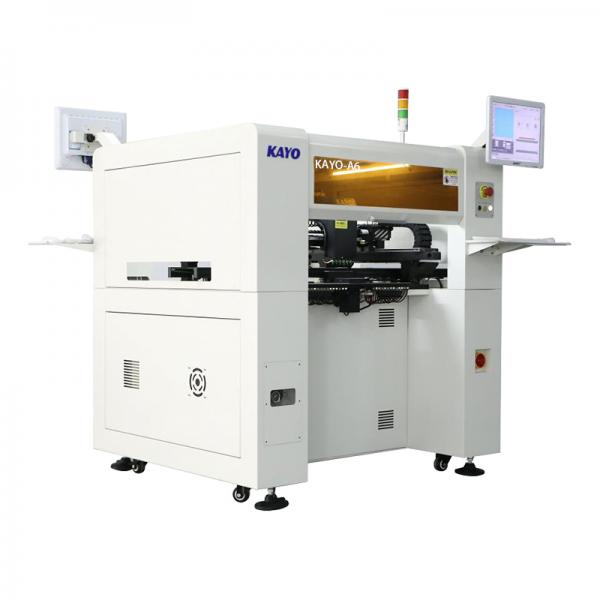

KAYO-A6 Automatic SMT PnP Machine 6-head

$14700.00

Specification

KAYO-A6

A6 Automatic SMT PnP MACHINE

1,8pcs of cameras: 1pc of Mark, 1pc of high precision, and 6pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.
2,XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.
3,Panasonic Servo Motor and Drive, TBI precise linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.
4,Three-section transmitting boards-automatic connection from left to right (The first section is waiting for mounting, the second section is responsible for mounting (When the PCB board finishes mounting and transmits to the third section, the first section also receives the demand to prepare a new boards simultaneously.), the third section transmits the board from p&p machine to reflow oven. Effectively save time of transmitting boards and improve efficiency.

Feeder No. 60
Mounting Heads 6
Average Power 600W
Positioning Accuracy 0.01mm
Nozzle Buffering Range 5.0mm
Power Supply 220V, 50Hz
Compressed Air 0.5-06Mpa
Driving Motor Panasonic servo motor
Recognition Method Six heads recognize synchronously
Nozzle Vacuum Source High-speed on-off vacuum generator with vacuum damage
Max. Circuit Board Area 650x370mm
XY Max. Movement Range 700x619mm
Z Axis Max. Movement Range 20mm
Belt Type Feeder 8/12/16/24mm feeders, stick feeder, tube chip
Max. Mounting Speed 13000CPH
Average Mounting Speed 10000CPH (Visual)
Dimensions 1335x1230x1420mm
Product Weight 500KGS
XYZ Drive Guide Rail TBI High-precision heavy-duty straight-line guide rail
Motion Drive System Panasonic High speed DPS driver
Operating System Support Windows XP, Win7 operating system
Component Angle 0~360°, synchronized rotation in motion
X/Y Running Mode Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide
Mark Point Positioning Full automation
Intelligent Alarm Automatic correction and supplement, alarm when materials shortage
Board Input Method Three-section transmitting boards-automatic connection from left to right, automatic PCB transmission positioning
Visual Display  15" industrial control display ratio 4:3, resolution 1024X768
Programming Mode Point-to-point programming, visual programming, PCB file coordinates inputting, etc.
Recognition Camera No. 1 Mark recognition camera, 6 high speed recognition camera, 1 high-precision recognition camera Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc.
