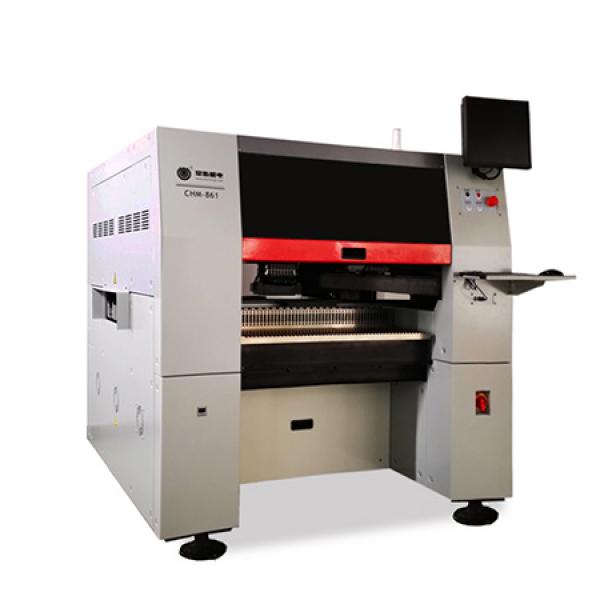

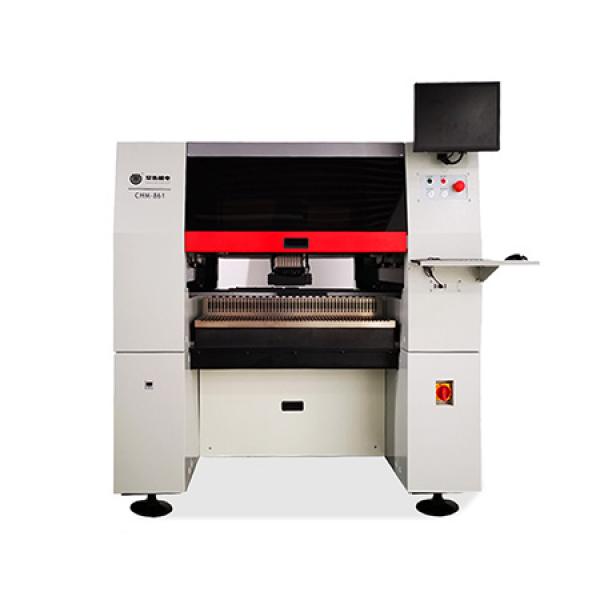

CHM-861 high speed vertical pick and place machine

$27890.00

Specification

CHM-861

China quality made vertical pick and place machine

CHM-861 pick and place machine specifications
CHM-861 pick and place machine

Basic parameters
Dimensions: 1600(L)*1430(D)*1530(H)
Net weight: 1600Kgs
Power supply: AC380V 950/60Hz, 3-phase)
Power: max 5.0kVA
Compressed air: 0.5-0.7MPa

Functional configuration
Heads: 8pcs nozzles
Feeder quantity: can upload 100pcs tape feeder (based on 8mm)
Feeder type: NXT electric feeder
PCB delivery: 3 pieces auto delivery with rails
Support for PCB: Yes
Motor: Panasonic servo motor
Transmission: THK screw and linear guide rail and carriage
Auto nozzle change: support (37 position in nozzle library)
Vacuum: built-in vacuum pump
Computer: built-in PC (Windows 7)
Auto programming optimization: support

Vision system
IC camera: 1pcs (40mm)
Flying camera: 8pcs (18mm)
MARK camera: 2pcs

Performance parameter
Accuracy: +-50µm@+-3δ
Speed: 30000 CPH (optimal)
Maximum component height: 12mm
PCB thickness: 0.6-3.5mm
PCB size: 450(L)*380(W)/600(L)*380(W) optional
