NEMA17 60mm 17HS6002 high torque stepper motor



Chat Online

NEMA17 60mm 1.5A high torque stepper motor

Order No.: 17HS6002-N27B.PDF

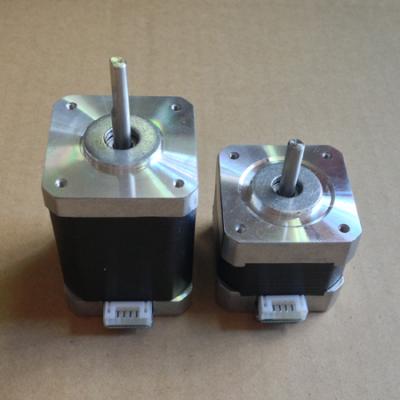

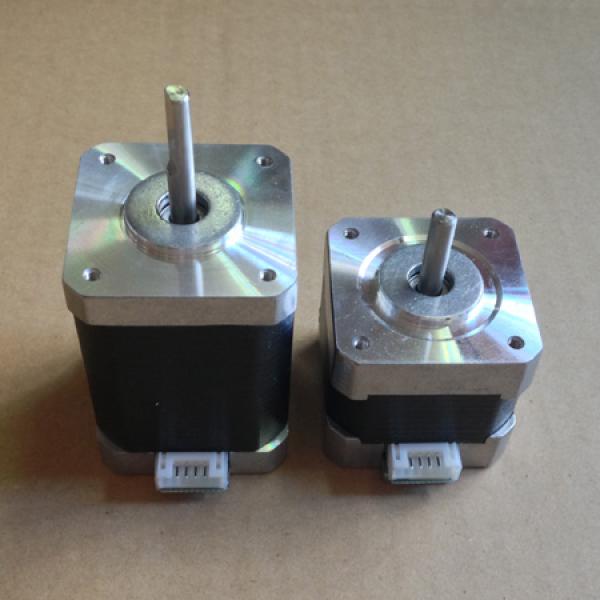

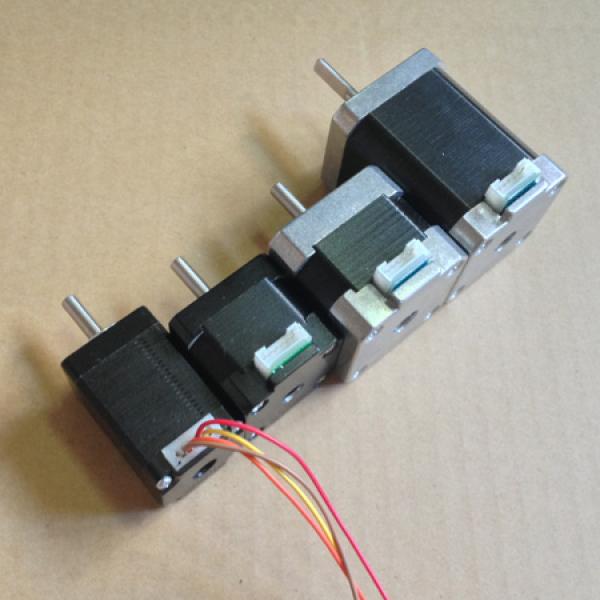

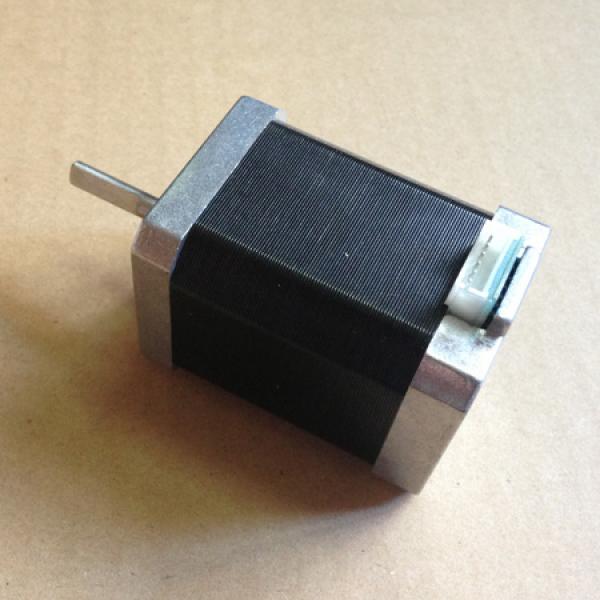

Motor Depth: 60mm, the longest body and the highest torque of nema17 stepper motor
Two phase 4 lead wires bipolar stepper
Step Angle: 1.8 degree, working with A4988 or DRV8825 stepper drivers, 3200pps or 6400pps per revolution, high resolution for 3d printers.
Rated Current 1.5A
Rated Voltage: 4V
Resistance per phase: 2.7Ohm +-10%
Inductance per phase: 6.5mH +-20%
Holding Torque: 0.65N.m or

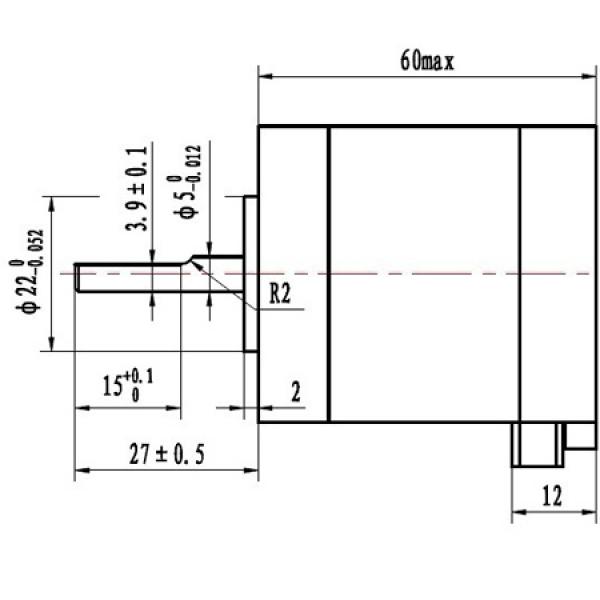

Shaft: 5mm single flat, used with 5mm bore pulleys.

The Nema17 60mm long stepper saves space and cost only half of a nema23 stepper, is a good choice for many high torque low speed applications. More powerful than the popular 2.8 V 1.68A RepRap stepper motor. To use 24VDC power supply stepper driver, this motor will have more torque output at high speed.
