Orbiter Extruder Step Motor NEMA14 36mm Round Pancake Motor for Voron Printer

$6.00

Specification

36HS2418CL16
Chat Online

Voron 3D Printer Extruder Motor

Direct Dual Drive Extruder Step Motor NEMA14 36mm Round Pancake Motor 36HS2418CL16 1.88A for Voron 2-Phase 4-Wire B36A

Specification:
Features: 100% brand new and high quality
Small size, lightweight, suitable for short-range printing
Only 22DB of running sound can make you sleep peacefully
High-temperature resistance, long service life, can run for 30,000 hours
All parts are installed and debugged well, and easily operate. Easy to install and simple structure.

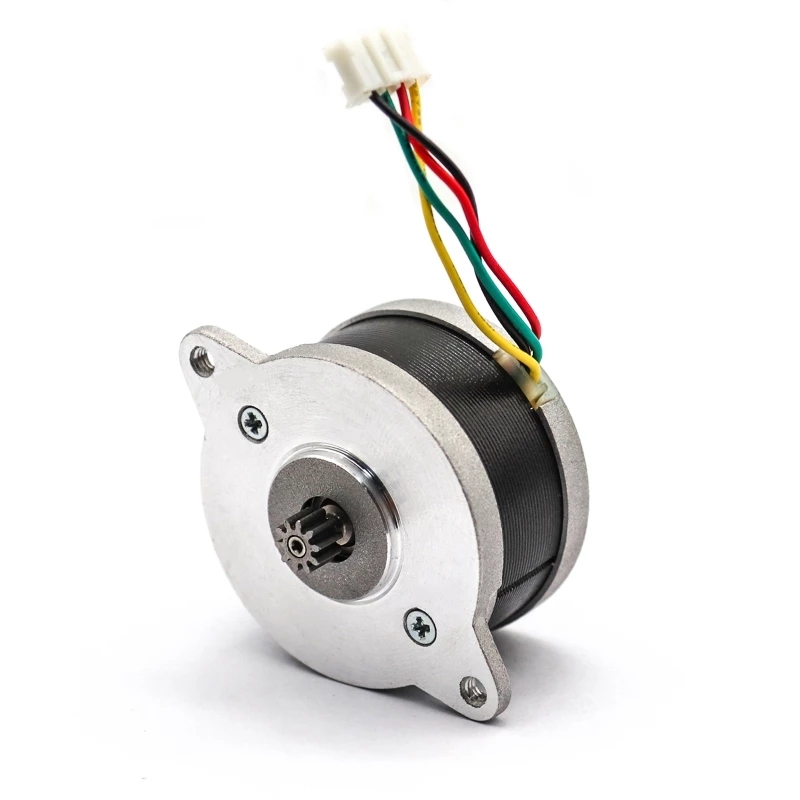

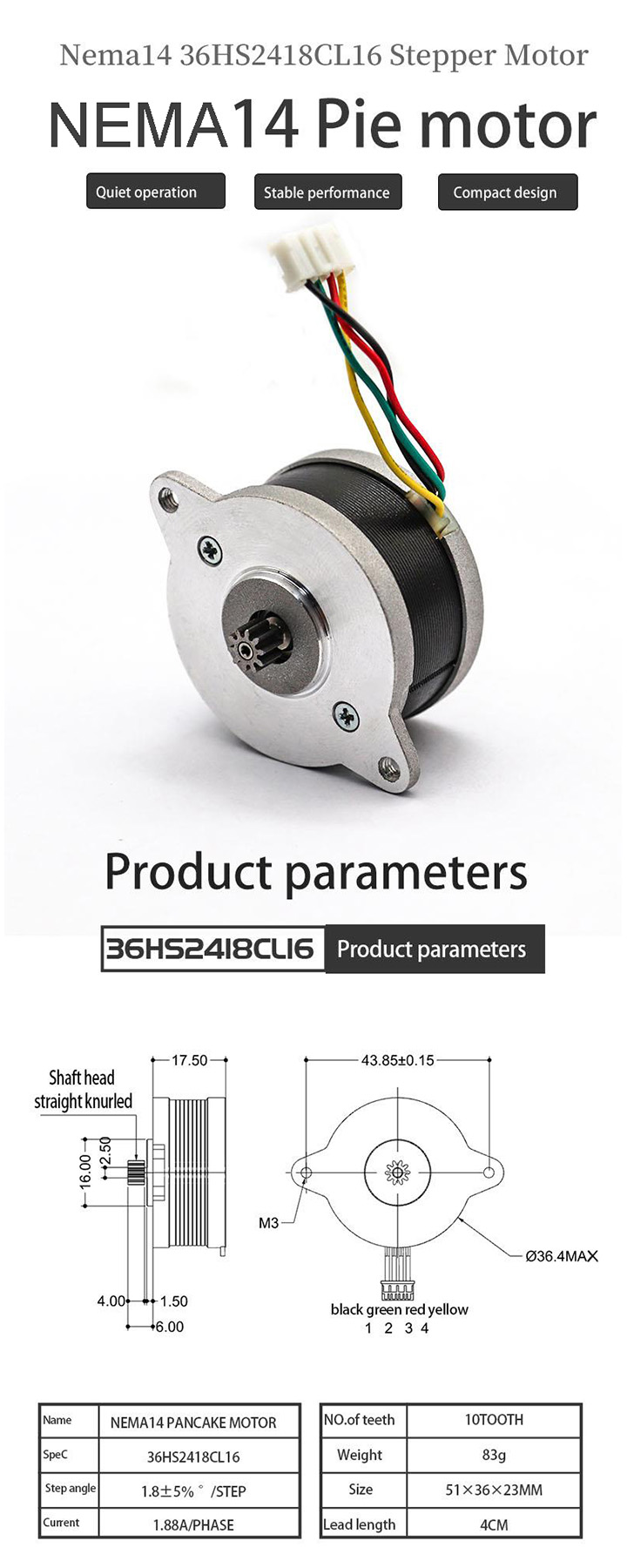

Name: NEMA14 Pancake Type Motor
36BYGH 36HS2418CL16
Step angle: 1.8±5% /STEP
Current: 1.88A/PHASE
Number of teeth: 10 teeth
Weight: 83g
Size: approx 51x36x23MM/2.0x1.4x0.90in
Lead wire length: 4CM/1.57in
Voron Printer Extruder Motor

Note: Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow a 0-1cm error due to the manual measurement.
