Vibration Feeder compatible with Yamaha or Juki

$118.00

Specification

YV/YG-3T_220VAC
YV/YG-3T_24VDC
YV/YG-5T_220VAC
YV/YG-5T_24VDC
YS-3T-220VAC
YS-3T-24VDC
YS-5T-24VDC
JK-V3T-24VDC
JK-V5T-24VDC
JK-V3T-220VAC
JK-V5T-220VAC

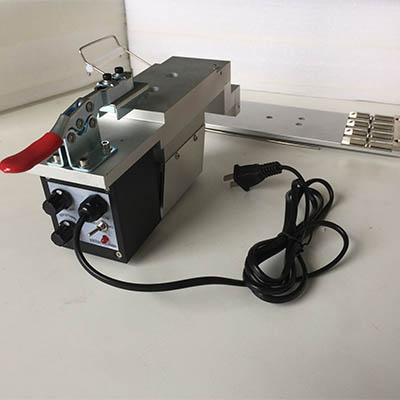

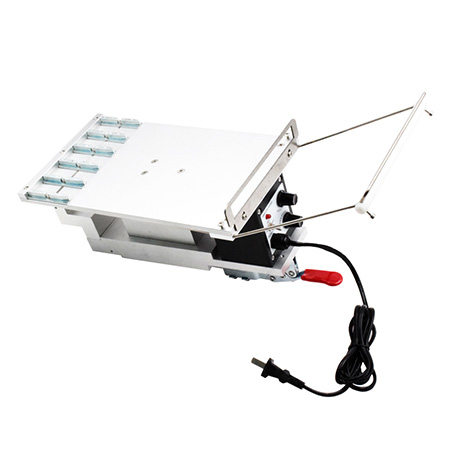

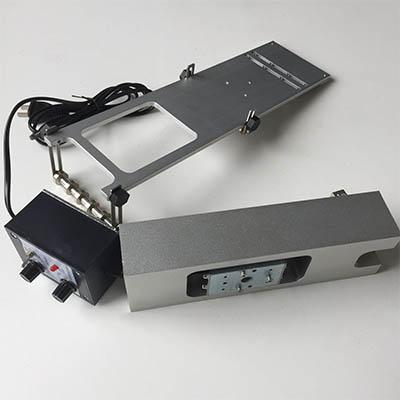

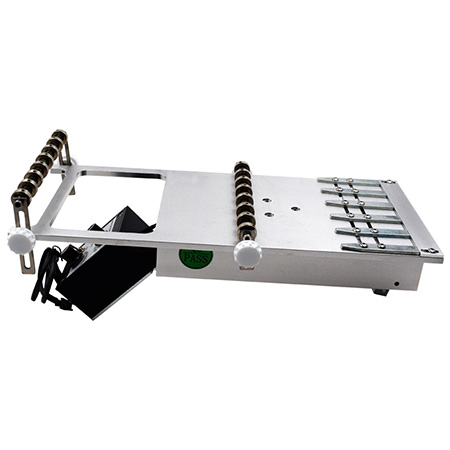

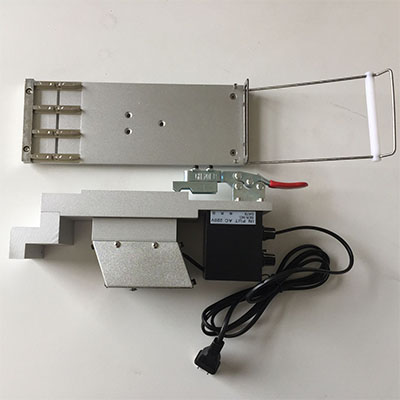

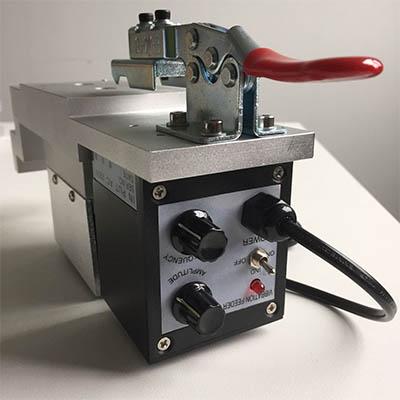

Vibration Feeder

Which is compatible with Japan mainstream Pick and Place Machine
24V vibration feeder for users to mount onto the pick and place machine. 220VAC needs outcome power supply.

The strength of the vibration amplitude can be adjusted, it has a stable performance and easy to operate.
The stick feeder can supply three, five, and other IC materials
Power: Online 24V / 110V and 220V external
It can be customized according to customer special requirements non-standard specifications.
Please choose the right one when you order

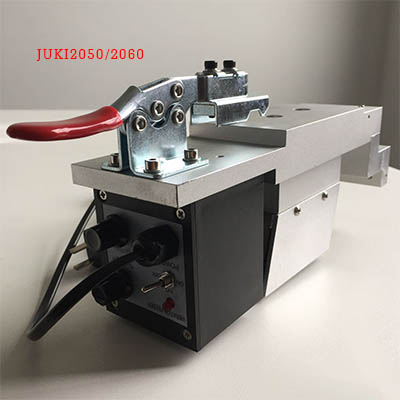

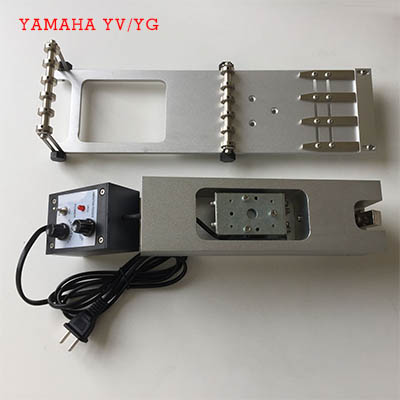

JUKI2050/2060/2070(compatible with JUKI 740) or YAMAHA YV/YG

Introduction

Vibration feeder (FEEDER), also known as STICK, is to achieve tube-mounted IC packaging chip mounting a relatively fast SMT auxiliary equipment, which is generated by a certain vibration frequency of vibration tube installed in the hose chip placement machine Suction nozzle location.A vibratory feeder is an instrument that uses vibration to "feed" material to a process or machine. Vibratory feeders use both vibration and gravity to move material. Gravity is used to determine the direction, either down, or down and to a side, and then vibration is used to move the material.

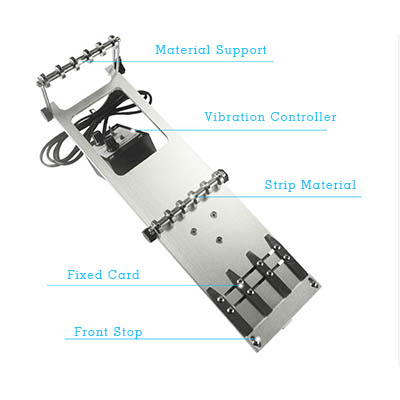

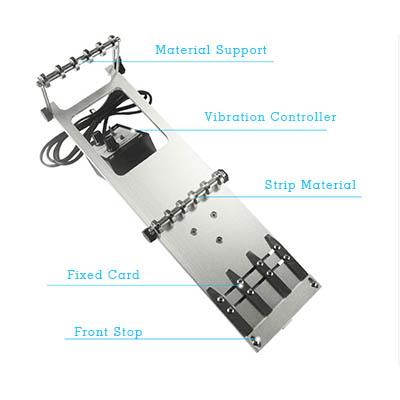

Features

1, the use of imported aluminum material production, the vibration intensity of the vice-degree can be adjusted, stable performance, easy to operate. Can supply three tubes, five tubes and other IC materials;
2, the whole anti-static design, reliable and durable;
3, parts placed with imported anti-static material SMD stop bit width adjustable;

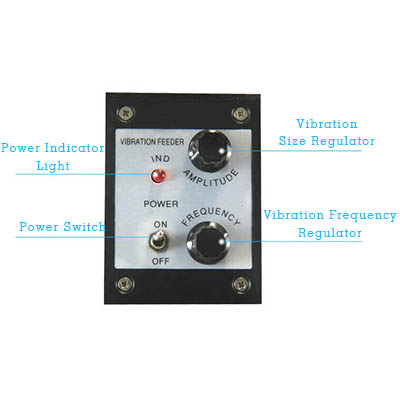

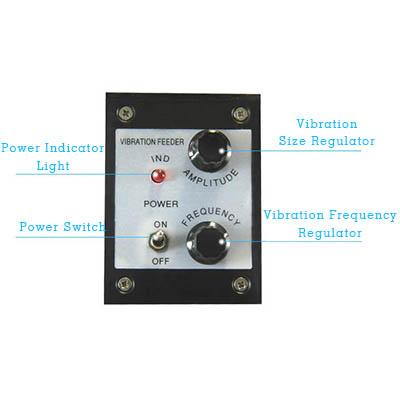

4, all models can be optional vibration feeder continuous vibration and intermittent vibration of two, set coarse and fine amplitude adjustment
5, the power supply for the 24V, 110V and 220V three, the power points of external power supply and even the machine
6, part of the vibration feeder with SMT communication port, and SMT online connection linkage (then SMT requirements and selection);

Vibration feeder for CHMT510P4, CHMT560P4 please select Yamaha YV/YG_24V
Charmhigh, Yamaha Vibration Feeder
