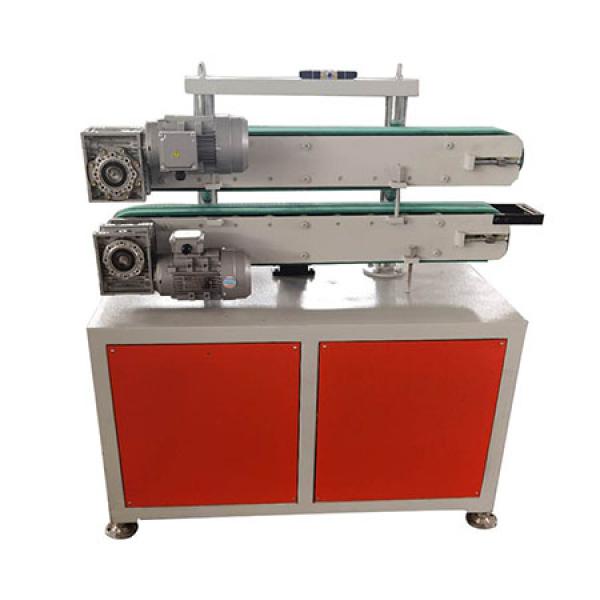

Caterpillar puller for plastic extrusion
This heavy-duty haul-off unit is designed for the stable traction of extruded plastic profiles and pipes. It utilizes a dual-caterpillar belt system to ensure uniform pressure and prevent deformation of the workpiece
Key Features:
Dual Drive System: Powered by two 0.75KW motors paired with RV63 gear reducers for high torque and synchronized pulling.
Precision Control: Equipped with Variable Frequency Drive (VFD) for smooth speed adjustment ranging from 0.2 to 30 meters per minute.
Adjustable Design: Features a handwheel-operated up/down adjustment system mounted on SR35 guide rails for easy setup and height calibration.
Robust Construction: A 1200mm traction length provides ample contact surface for a maximum pulling force of 150KG.
Stability: Includes front and rear guide rollers to ensure the material remains centered during the extrusion process.
Technical Specifications:
Model/Type: Caterpillar Haul-off
Traction Drive: Dual Motor (0.75KW x 2)
Gear Reducer: RV63 (Ratio 1:20)
Belt Width: 100mm
Traction Length: 1200mm
Speed Range: 0.2–30 m/min (VFD Controlled)
Max Pulling Force: 150KG
Center Height: 1000mm (±50mm adjustable)
Input Voltage: 220V/380V/415V/440V AC 50/60Hz
Guide Rails: SR35 for vertical adjustment
Servo motorized fly-knife and caterpillar pulling
For different applications, the fly-knife (fly cutter) and caterpillar pulling machine can be integrated for higher efficiency. Both are controlled by Servo Motor, welcome your inquiry.
