Laser Gauge diameter measuring instrument for extrusion production



Chat Online

Laser Gauge for 3D Printing Filament Production Line

User Manual of the Laser Gaugue
1. Features:
•Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact, non-damage from the different angle, it can effectively eliminate error caused by work vibration;
•DSP data processing technique: The sampling speed is quick ,precision is high and the performance is stable;
• The reaction control integration module with PID constitute the online outer diameter closed loop observation and control system (e.g.: diameter of the object measured is slight big or small, transmission rate is big or small), which can change the transmission rate to control the outer diameter be tested through adjusting the power supply with PID. It’s easy to operate, user can setup a boundary numerical value, main engine will give an alarm automatically while the test result exceeds the set value.
2. Applications

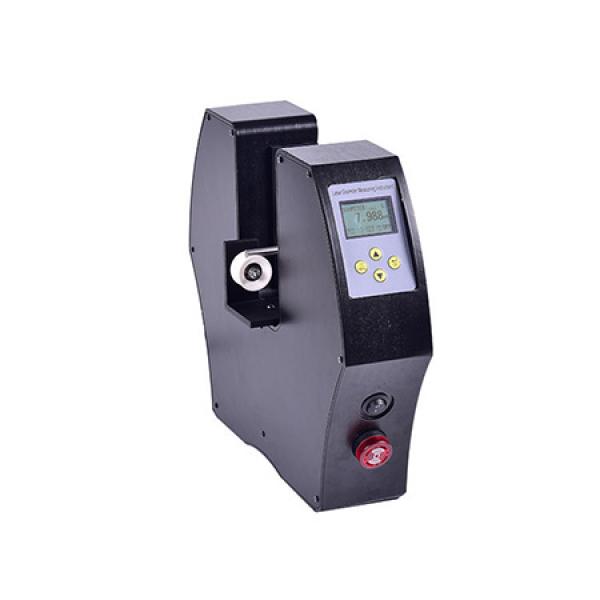

The LG05B Laser Diameter Instrument is a high accuracy one without contacting designed on the basis of the laser scan measuring principle. The 2-dimension measuring mode is applied to the instrument, and the 2-way laser beam is in the positive cross design in the measuring field, thus effectively eliminating testing errors caused by work piece shocks. It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters.
3. Technical specifications
* Measuring range: 0.2-30mm(LG05B)
* Sensitivity: 1um
* Measuring accuracy: ±2um(LG05B)
* Ambient temperature: 4-40℃
* Ambient humidity: <85% without condensed dew
* Power consumption of instrument: less than 50W
* Operating voltage: AC220V 50HZ±10%
* Scanning rate: greater than 50m/c
* Dimension : 7.6*29*36.6(cm)
* Weight: 10Kgs
* Colour: Black
* Place of Origin: China

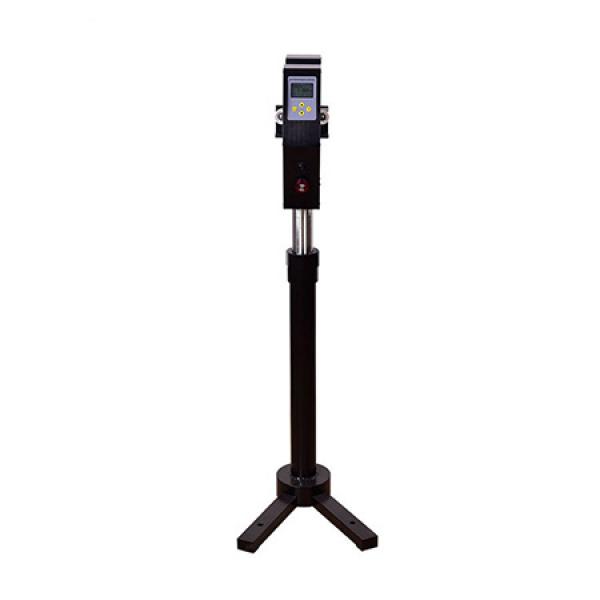

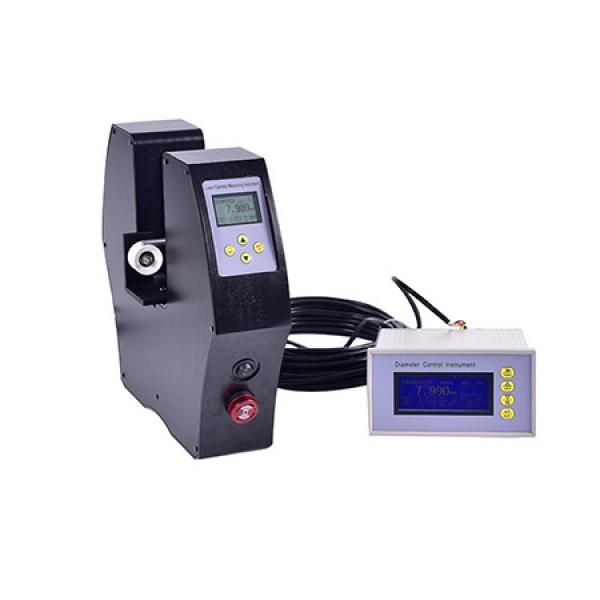

Remote digital display and the stand are included. The stand is about 20Kgs and if you do Not need you can save shipping cost around 100USD by courier.
