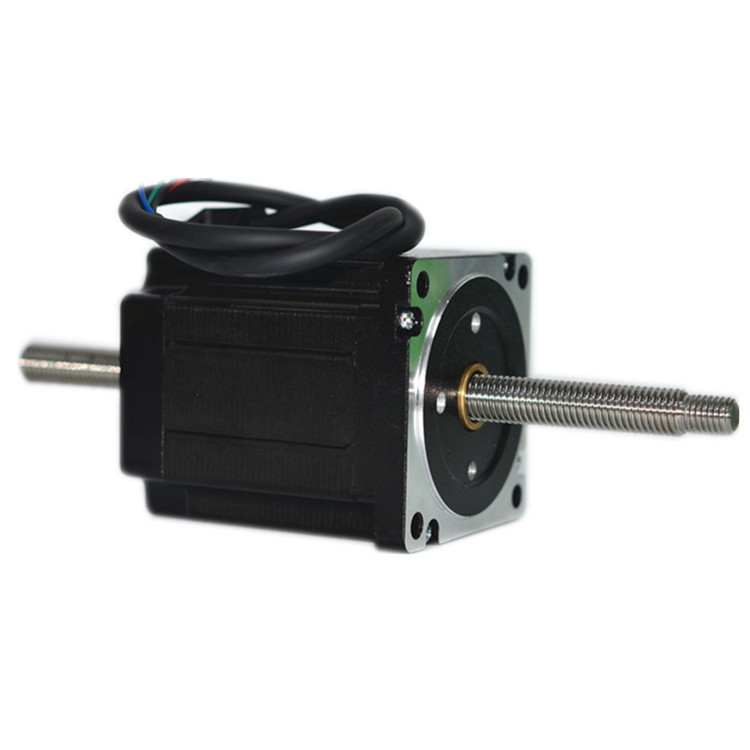

NEMA34 Non-captive Linear Stepper

NEMA34 98mm Non-captive Linear Stepper
Step angle 1.8 degree
Rated current 4.5A per phase
Phase resistance: 0.65+-10%
Phase inductance(1KHz)+-20%(mH) 1.0
Shaft axial play: 0.075mm max of 10N
Shaft radial play: 0.025mm Max of 5N
Non-captive NEMA34 Linear

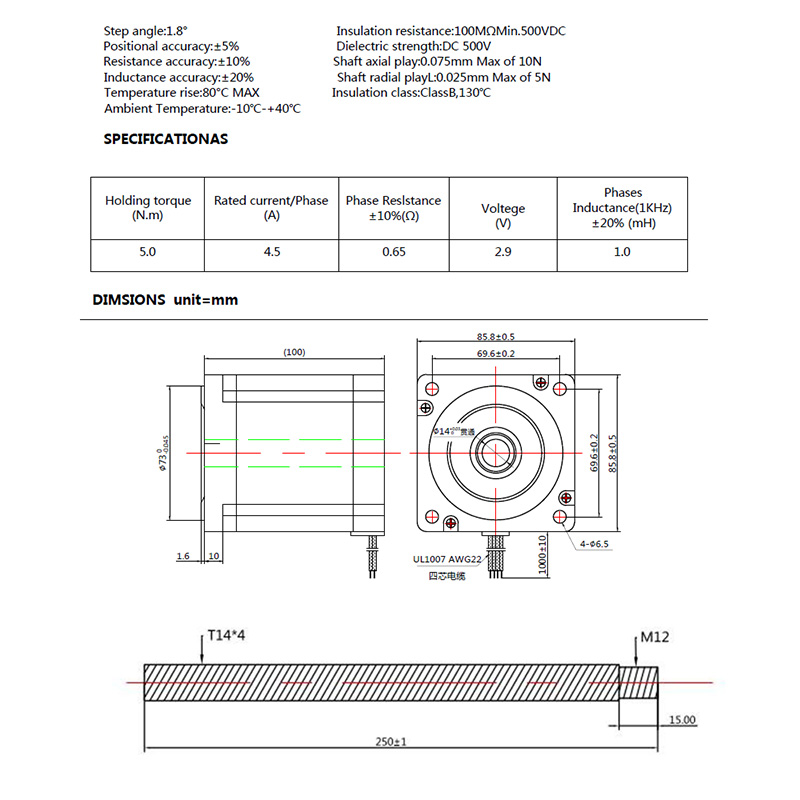

Note: the above drawing is for reference only. The standard lead screw comes with NC34HS2403-T144 is 400mm Tr14*4 leadscrew with No machining ends.
