NEMA17 22mm linear stepper motor with 52mm Tr5*8 lead screw

$25.00

Specification

17HS0403-52N58
Chat Online

Pancake Linear Stepper Motor

Electrical Specification

  • Manufacturer Part Number: 17HS0403-52N58
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 80mN.m
  • Rated Current/phase: 0.4 A
  • Phase Resistance: 30Ω
  • Inductance: 30 mH ± 20%(1KHz)

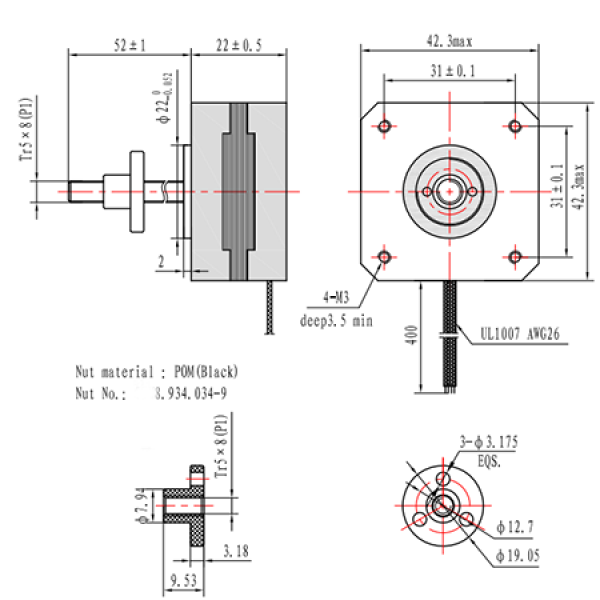

Physical Specification

  • Frame Size: 42 x 42 mm
  • Body Length: 22 mm
  • Lead Screw Length: 52 mm
  • Lead Screw Diameter: Φ5 mm
  • Lead /Step:0.04 mm
  • Lead/Revolution: 8 mm
  • Number of Leads: 8
  • Lead Length: 400 mm
  • Weight : 200 g

Connection

A+
A-
B+
B-
Red
GRY
YEL

GRN
