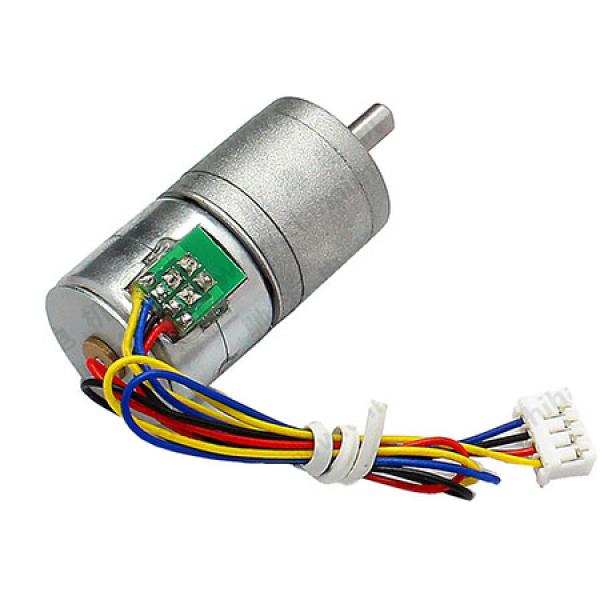

GM20BY pm stepper motor with planetary gear

$8.90

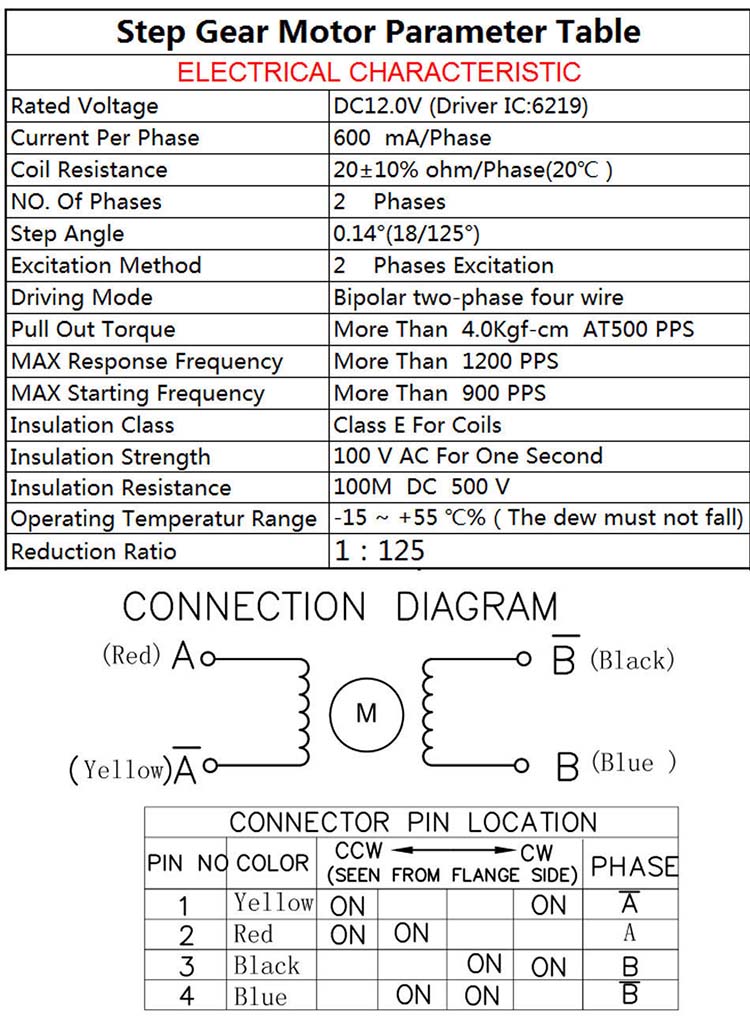

Specification

GM20BY-12V-62.5
GM20BY-12V-100
GM20BY-12V-125
GM20BY-12V-250

GM20BY geared pm stepper motor

Motor type: PM Stepper Motor
Accessory: Planetary gearbox
GM20BY geared pm stepper

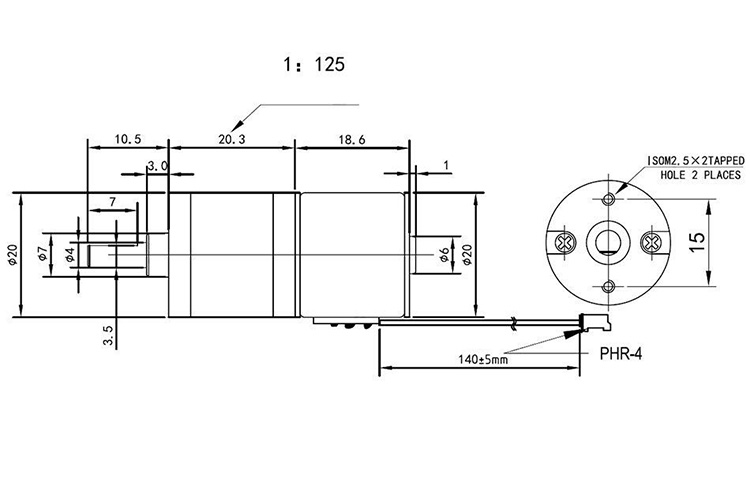

Spec.D*L(mm): 20.0×18.5
OD(mm): 20.0
Length(mm): 18.5
Shaft diameter(mm): 4.0
Voltage(V): 5-12 VDC
Current(A): 100mA 5VDC, 600mA 12VDC Reduction Ratio: 100:1
Gearbox length(mm): 17.4
Number of phases: 2
Step angle(degree): 18°
Resistance(Ohm): 60.0
Holding torque(kgf*cm): 0.13×75
Pull in rate(pps): 700
1.Small size dc gear motor with low speed and big torque
2.20mm gear motor provide 0.3Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Reduction Ratio: 25, 62.5, 100, 125 or 250
pm stepper motor gm20by
