Micro DC plastic planetary Geared Motor

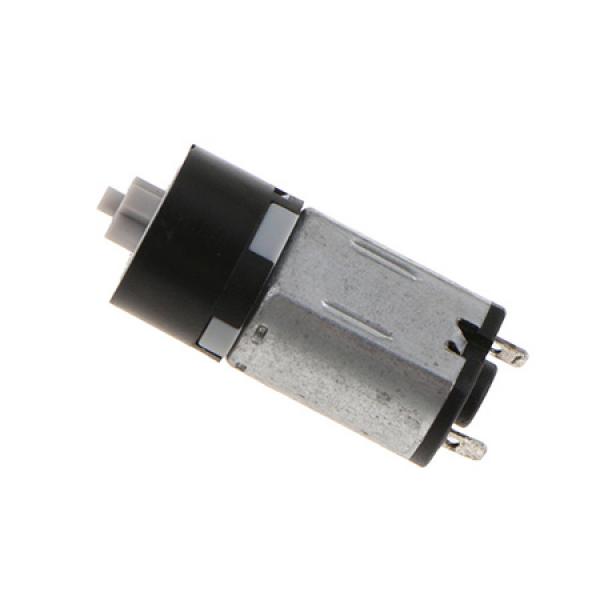

10GP-M10 micro geared motor

- Rated Voltage: DC 3V
- Gear Ratio: 1/171
- Rotation: CW & CCW
- Motor Position: All position in horizontal
- Working Temperature: 0 - 30 ℃
- Working Humidity: 30% ~ 95%
- Output Speed: 60±10% RPM
- No-load Current: 60mA (Max)
- Stall Current: 250mA (Max)
- Stall Torque: 800g.cm
- Rated Torque: 300g.cm
- Rated Current: 140mA (Max)
- Rated Speed: 35±10% RPM
- Noise: 50dB
- Total Length: 24mm
- Reduction gearbox diameter: 10mm

12GP-M20 plastic planetary gear motor

3.7V 250RPM
