Diaphragm pump 4 desktop PNP Machine

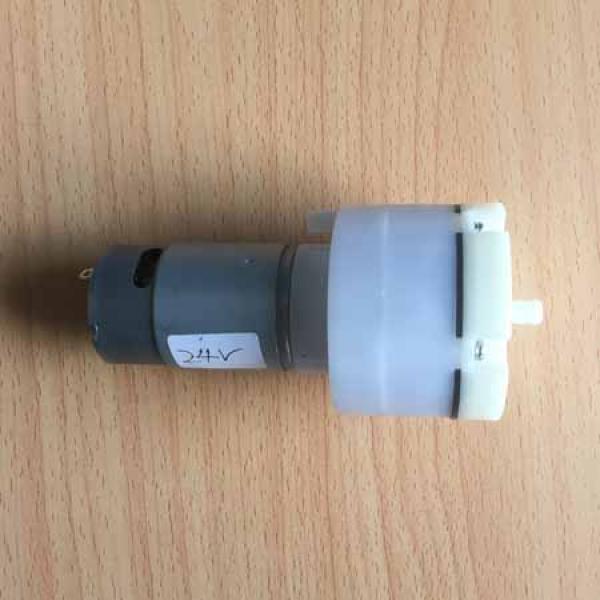

Diaphragm Pump for Desktop PNP Machine

Rated Current: DC12V or 24VDC
Rated Current: 900-2000mA@ 12v, 900-1500mA@ 24v
Inflation time: < 5 Sec (From 0 to 300mmHg @500CC vessel)
Max. Pressure> 525 mmHg(70KPa)
Air tightness: < 10 mmHg/minute
Flow rate: > 13.0 L/Min
Noise: < 60 dB
Nozzle diameter: Φ 7.0mm
Dimension: Φ60*120 mm<

Blow 6*9mm Tubing is applicable and Suck it adopts 5*8mm Tubing.
