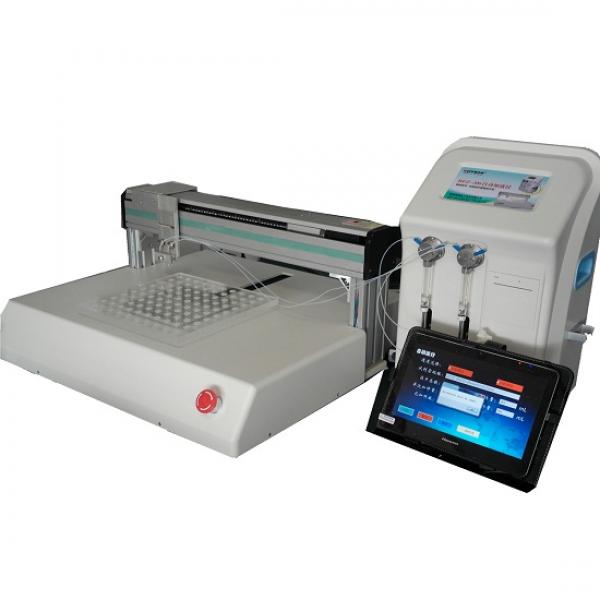

Dual-channel automated liquid dispensing system, pipetting workstations



Chat Online

Dual-channel automated liquid dispensing system, pipetting workstations, plate can be customized RFZ  series automatic liquid dispensing system is richer Electric Division  launched a new generation of multi-function liquid dispensing equipment,  high-strength and corrosion-resistant shell Y-ceramic rotary valve is  done by pure imported materials Seiko production, the choice of  high-speed chip, next generation power plant propeller  and 7-inch color touch screen provides high precision experiments  stable and secure; RFZ series automatic liquid dispensing system is a  single agent, double agent and multi-agent (supports up to four  different reagents) dispensing automatic mode; system stable, accurate and efficient; easy to operate, simple, fast; among  the various types of laboratory and industrial equipment belong choice.

Multi-industry: it can be used for chemical analysis, environmental  analysis, pharmaceutical analysis, clinical medicine, biotechnology,  molecular biology, food industry;

Typical  customer: environmental, petrochemical, marine, construction and steel  industry analysis center; measurement, quality inspection and  environmental agencies; hospital, CDC, blood and forensic identification  center; chemical, biological and pharmaceutical laboratories and other  professional; chemical plant , pharmaceutical and pesticide factories and other enterprises;
★ Features:

Digital control automatic pipetting precision dispensing, avoid human error.
System Maintenance: System filling; cleaning system; the system evacuated.
Guided calibration function, according to the instrument calibration prompt realization of the syringe. Chinese user interface.
Custom input method, the use of large numbers, text and symbol keys, task parameters easily enter.
Smart Task setup and maintenance functions, complex liquid handling tasks an easy interface to complete.
Tasks are automatically saved and loaded, save an unlimited number of tasks.
Dual syringe synchronization, improve operational efficiency.
Dual choose different agents, to enhance dispensing compatibility.
10, all liquid line piping and components exposed to the outside of  the instrument, easy removal and replacement, which will help install  the fluid path system, disinfection, cleaning, and maintenance.
Ceramic rotary valves, reagent compatibility, and no dead volume.
12, fluid channel material: Teflon (a Teflon), ceramic, borosilicate glass.
13,10 inch tablet control operation can also be an external mouse and keyboard, easy to operate.
★ technical indicators:

Compatible injector Model: You can use a variety of models syringe, 250μl, 500μl, 1ml, 2.5 ml, 5 ml, 10 ml and 25 ml.
Centrifuge tube rack (compatible plate): 10 * 10 well plates (customer-specific use, a variety of compatible)
Liquid handling volume: 10μl-25ml
Accuracy: ≥99% (ie deviation<1%)
Precision (repeatability): ≤ ± 0.1%
Syringe effective working distance: 60mm, error ± 1mm
Incremental volume: total capacity syringe 0.1% to 100%
Pusher piston speed: 2-14mm / s, the maximum speed of the plunger and  the needle tube capacity, and viscosity of the liquid dosing  requirements for adjustable speed.
Out of the liquid velocity (recommended): 0.5mL / min-80mL / min
Dispense time / times: 0.5-2s (based on a single flow size changes)
Operating temperature: 5 ℃ -40 ℃
Humidity range: 10% -90% non-condensing (avoid static)
Atmospheric pressure: 700hPa-1060hPa
Power: 220V-24V / 36V, 120W
Weight: about 23.6Kg
Size: 664mm × 590mm × 355mm, 270mm × 200mm × 430mm (length × width × height) ★ configuration list:

Host 1
A 10-inch tablet PC, with software (system: Windows XP)
Imported original ILS syringe (5ml) 2 Zhi
Power cord (220V-24V / 36V) 1 Gen
Hose (1/16 inch) outside diameter of 6 m
O-ring 5 * 1.5 8 (2 sets)
7, Other: Software Installation CD 1;
User Manual 1;
1 single receipt service;
factory certificate 1; 1 small parts bag
FOB Shanghai Delivery 15 days after payment
