Lab Vertical Planetary Ball Grinding Mill



Chat Online

Laboratory Planetary Ball Mill

Note: Jars are Not included. For other sizes please leave us a message or email us for more.

Elegant design, easy to operate
Ideal for wet or dry grinding application
Automatic and programmable control with LED display
Multiple grinding modes to choose
High uniformity and excellent repeatability
Fast rotational speed, high efficiency, and fine granularity
Reversing function
Programmable interval and pause times
Four samples with different sizes and materials in one experiment
Stepless speed regulation; ideal rotary speed selection according to experimental results
Large range of materials available for grinding media
Gear drive offers an effective solution to problems caused by belt driving, such as belt creep and belt abrasion
Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution, and small wear
Cooling of the grinding chamber with a built-in fan for long grinding times
Areas of Application
Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay

Chemistry: pesticides, fertilizers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying, and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography

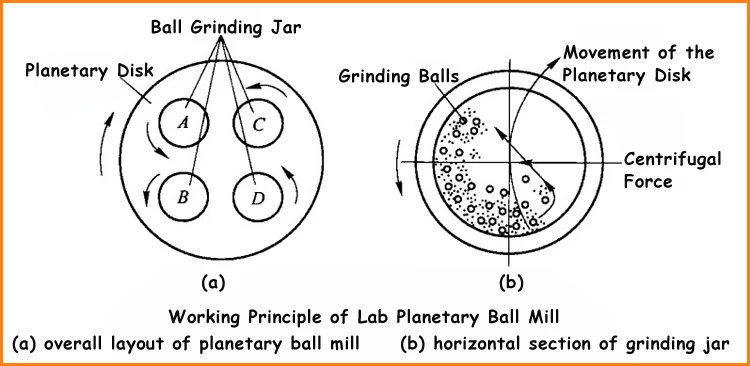

Working Principle
The grinding sample is comminuted by high-energy impacts from grinding balls and friction between balls and the grinding jar wall.

Technical Data

Working Principle

impact and friction force

Item No.


Compatible Grinding Jars

(250ml~500ml) * 4

Max Feeding Capacity

2/3 capacity of the grinding jar

Operation Mode

2 or 4 grinding jars working simultaneously

Feeding Granularity*

Soil materials < 10mm, others materials < 3mm

Discharging Granularity

down to 0.1μm

Sample Type

hard, medium-hard, soft, fibrous, brittle, moist

Rotational Speed of Grinding Jar


Rotational Speed Ratio (planetary disk/jar)

1 : 2 (≤4L) and 1 : 1.5 (≥12L)

Drive Mode

gear drive and belt drive

Speed Control

stepless speed regulation

Electrical Details

220VAC, 50Hz, single phase, 0.75KW

Max Continuous Grinding Time

72hours (full-load)



Dimension (L*W*H)


Noise Level

< 70dB

If the sample feed is larger than these then it must first undergo preliminary size reduction.

Photo Show

Performing a Grinding Operation

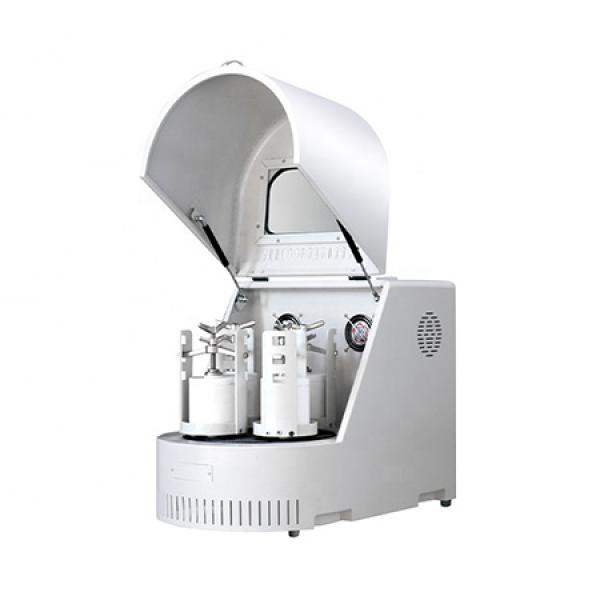

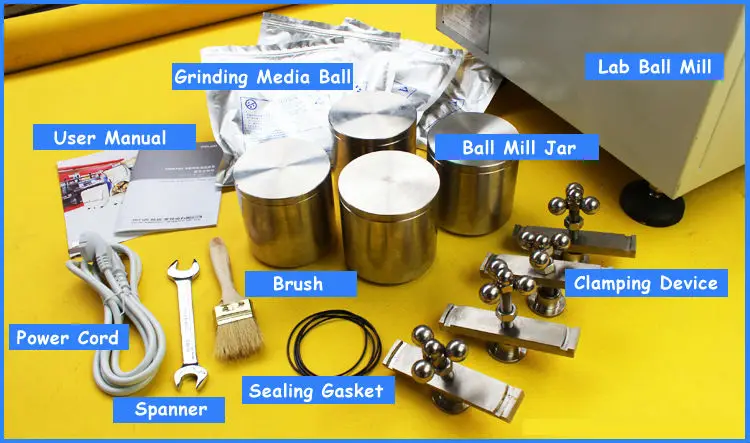

Complete Set of Vertical Lab Planetary Ball Mill


Please note:
For this ball mill, you require two or four grinding jars of your choice and the corresponding number of grinding balls. The grinding jar material must also be harder than the material to be ground. In normal cases, grinding jars and balls of the same material are used. To shorten the grinding time, larger or heavier grinding jars and grinding balls with a higher density can be used.
However, the standard packages of the mill don't include grinding jars or balls. They must be ordered as accessories.
Frequency Conversion Control System

Main Programs
Single direction without timing: samples need long or non-stop milling
Single direction with timing: samples need to be milled in one direction for a designated amount of time before automatic shutdown
Bi-direction with timing: i.e. samples need to run clockwise for 1.5 hours, then counter-clockwise for another 1.5 hours, and so on, for 15 total hours, before the machine shuts down itself

Single direction with paused interval and timing: i.e. samples need to run for 0.5 hours, then pause for 1 hour, then run for another 0.5 hours in the same direction and pause for another 1 hour, for 10 cycles before auto shutdown
Bi-direction with paused interval and timing: i.e. samples need to run clockwise for 0.8 hours, pause for 0.5 hours, then run counter-clockwise for 0.8 hours, for 20 cycles, before auto shutdown.

Jar types
Corundum ball mill jar 99 alumina
99 alumina grinding tank
Grade A Agate Grinding Jar
Agate grinding tank
Stainless steel tank 304, 316
Stainless steel grinding tank
95 zirconia tank
95 Zirconia grinding tank
