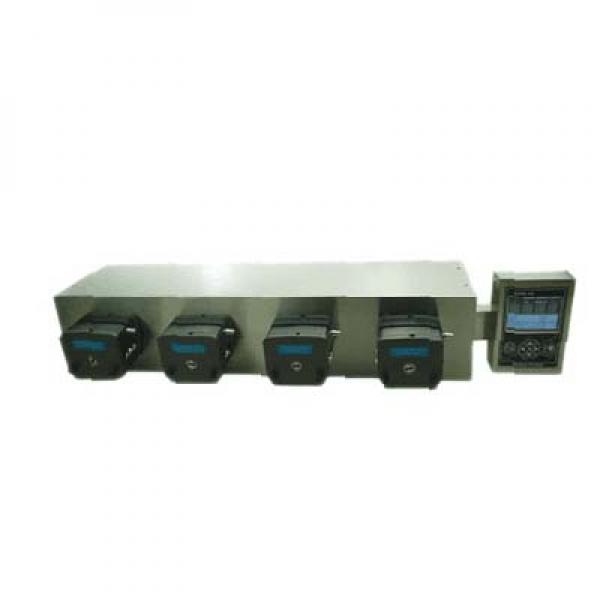

Z30-1A automatic liquid filling systems, dispensing, pipetting workstations, 4-channel, scalable 16

Technical parameters:

Filling fluid volume range: 0.1-30mL
Filling time range: 0.5 to 30 seconds
Speed range: calculated automatically by filling liquid volume and filling time
Suction angle range: 0 ° -1000 °
Washing tube speed range: pipe cleaning fluid or pre, 150-350rpm (13 #, 14 #, 19 #, 16 #)
Filling liquid correction: to set the actual value input filling liquid filling the liquid amount obtained automatically filling liquid correction.
Filling Set Range: control signal when not in use, you can set the number of filling. 1-60000 times, "0" as an endless loop
Start and stop control signal input: normally open contact input
down memory: after power down before holding parameter settings
Communication Interface: RS485, Modbus protocol support
Dimensions (L × W × H): 640 × 265 × 130 (mm)
Power supply: AC 220V ± 10% / 150W
Working temperature: 0 ℃ -40 ℃
Relative humidity:<80%
Housing protection: IP31
Weight (one unit): 10kg
Delivery: shipping 15 days after payment
FOB Shanghai
