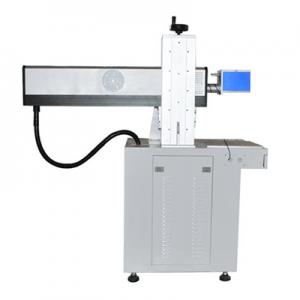

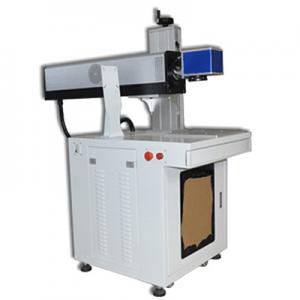

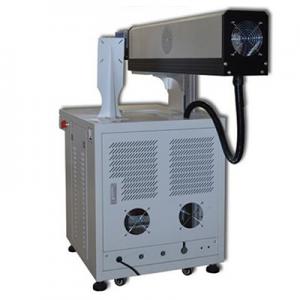

CO2 laser marking machine

$3699.00

Specification

JWCO2-15W
JWCO2-30W
CO2 laser marking machine is used to leather processing, agricultural products, aquatic products and other industries shelled tailored for product characterization, identification, security of high-tech products. Marking and non-metallic material is various animals and plants live. Marking content is not limited, and may include content personalized designs graphics, company logo, of Pen number, product serial number, producer units, and specifically for the region, effectively prevent disorderly competition counterfeit products, is adapted to have a production base, get no notary public nuisance, in the domestic market has a high reputation and market share of the brands.
Total power 1000W
RF laser wavelength laser
Laser Power Option 15W(20W) 30W
Marking area 110 * 110mm (200 * 200 300 * 300)
Resolution 0.025mm
Marking speed 0-7000mm / s
The engraving depth ≤1mm (depend on material)
Top width 0.015mm
Minimum character 0.2mm
Repeatability ± 0.005mm
Power requirements 220VAC, 1KAC

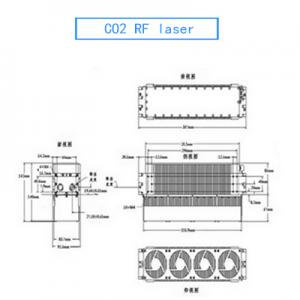

D-30 laser conditions of use
Wavelength 10.55um-10.63um
Continuous rated output power 30w
Power stability ± 5%
Mode quality M2 <1.2
A beam diameter of 1.8 ± 0.2mm
Beam divergence angle of 7.5 ± 0.5mm wide angle in radians
Linearly polarized polarization (> 100: 1) parallel to the width direction
Operating frequency and duty cycle 0-25khz, 0-100% DC
Weight 6.6KG
Dimensions LWH: 35.7 * 92.5 * 154.5mm
Input voltage 48VD ± 2%
The average maximum current of 12A requires a power capable of withstanding peak current 18A, less than 1ms
Heat load is less than 575W
The maximum case temperature less than 60 ℃ (140F)
Studio environment temperature 5 ℃ -40 ℃
Humidity non-condensing
