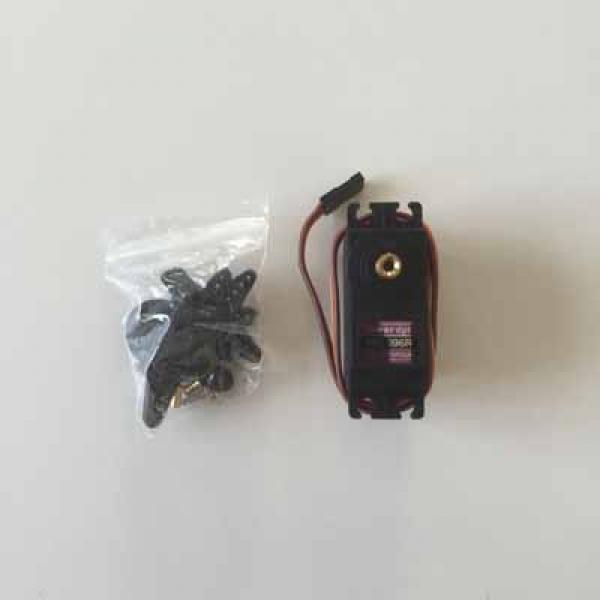

MG996R Servo

$6.00

Specification

MG996R

Size: 40.8 * 20 * 38mm
Weight: 55g
Speed: 4.8V@0.19sec/60°
6.0V@0.18sec/60°
Torque: 4.8V@9kg-cm
>6.0V@11kg-cm
Voltage: 4.8V-7.2V
No-load operating current: 120mA
Stall Operating Current: 1450mA
Pulse response time: ≤5usec
Angle deviation: gyrus error 0 degrees, around the 45 ° error ≤3 °
Gear: 5 Metal Gear group
Cable length: 300mm
Interface Specifications: JR / FP General.
Servos have three lines definition:
Dark gray: GND
Red: VCC 4.8-7.2V
Orange Line: pulse input
360-degree steering angle can not be controlled, only supports one way direction.
