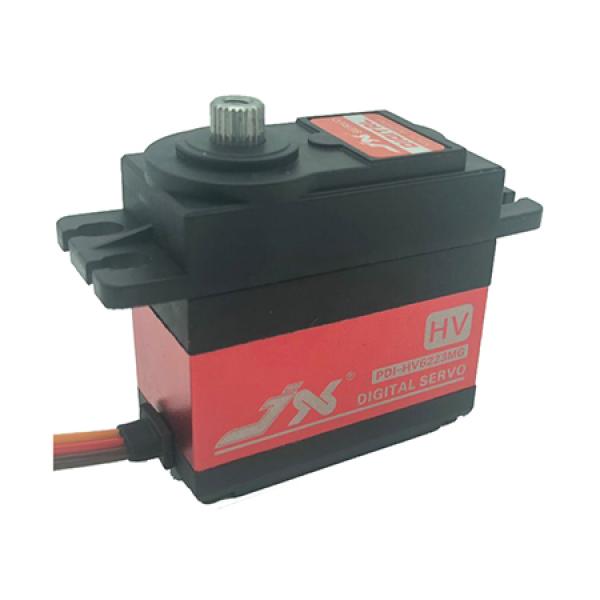

23Kgs Metal Gear HV 8.4V DC Digital Servo

$12.80

Specification

PDI-HV6223MG

23Kgs Digital RC Servo

FEATURE:
High performance high voltage 8.4V DC digital servo
High-precision Taiwan-made aluminium gears with hard anodizing
CNC aluminium middle Shell
Dual ball bearings
HV RC Servo
SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed 8.46V): 0.16 sec/60°
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V): 23 kg.cm

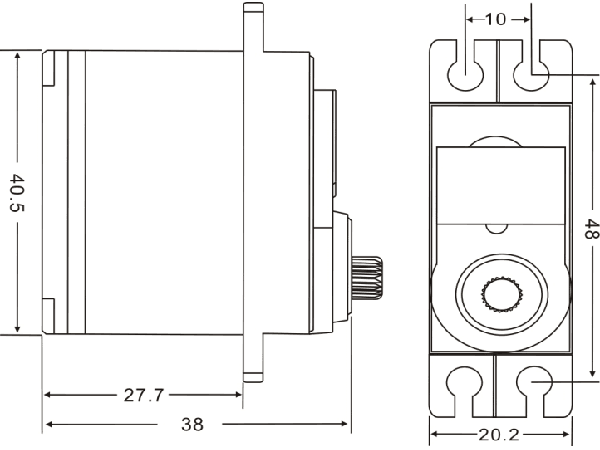

Dimensions: 40.5X20.2X38mm
Weight: 62 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
