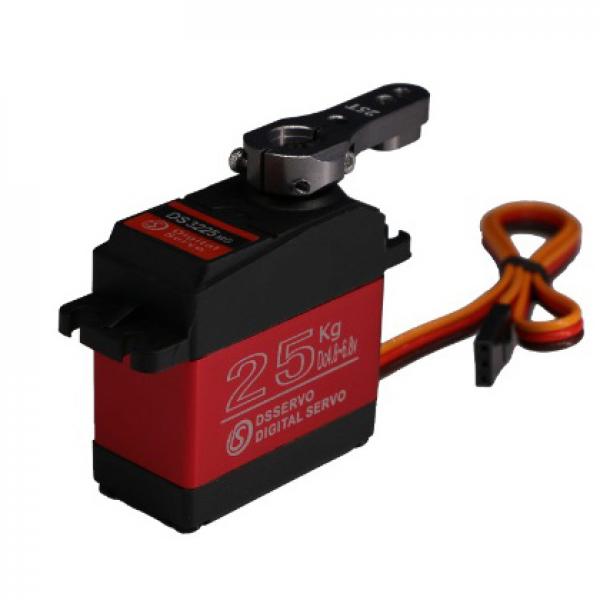

Brushed DC motor 25Kg Digital Servo for Ventilator

$10.50

Specification

DS3225
Chat Online

Digital Servo for Ventilator?

DS3225 Digital Servo can be used for Ventilator?
Ventilator Servo
Electrical Specification
No. Operating Voltage 5V 6.8V
Idle current(at stopped) 4mA 5mA
Operating speed (at no load) 0.15 sec/60° 0.13sec/60°
Stall torque (at locked) 21 kg-cm 24.5 kg-cm
Stall current (at locked) 1.9A 2.3A

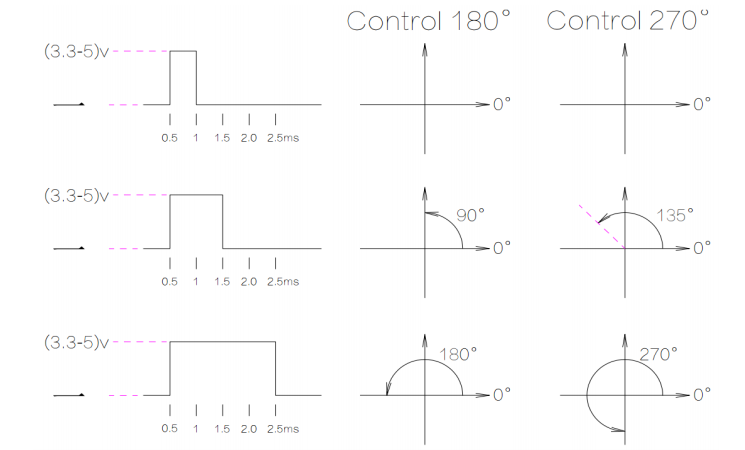

Control Specification
Control System PWM(Pulse width modification)
Pulse width range 500~2500µsec
Neutral position 1500µsec
Running degree 180°or 270° (when 500~2500 μ sec)
Dead band width 3 µsec
Operating frequency 50-330Hz
Rotating direction Counterclockwise (when 500~2500 µsec)
PWM control
Digital Servo
