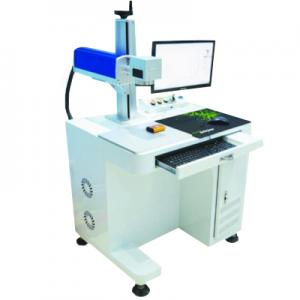

Optical Fiber Laser METAL Marking Machine

$2899.00 $2699.00

Specification

JW-F10w
JW-F20w
JW-F30w
JW-F50w
JW-MOPA20w

JW-F20w is widely used in various lines and high-speed flight marking marking a static industry, to meet a variety of high-precision, high-efficiency laser marking desired, using the world's leading fiber optic lasers and imported spare parts, high precision marking fast, stable performance, long life of 100,000 hours, can for the two-dimensional code on the marking metal marking and many other high-tech technology.

Laser Engraving or Metal Marking Machine

Quick Start Manual
https://drive.google.com/file/d/1iFrlD2Kvvpy_0nvxxQ-YOnHiW4raVkhb/view?usp=sharing

Laser output power 10W/20w
Major differences between 10w and 20w
1, 20w is quicker,if a sample needs 18 seconds using 20w, it will take 24 seconds using 10w
2,Deepest depth:0.3mm for 10w/0.4mm for 20w

Beam quality <2
Laser Wavelength 1064nm
Air Cooling
Pulse frequency 20KHz -100KHz
Marking area 110x110mm
Product Size 90x70x145cm
Packaging Size 100x80x115cm
Engraving line speed ≤7000mm / s
The engraving depth ≤0.3mm (10w) ≤0.45mm (20w)
Minimum line width 0.015mm
Minimum character 0.15mm
Repeatability ± 0.003mm
Power requirements AC / 220V / 50HZ (can be customized 110v)
Total power ≤800W
Communication Interface USB2.0
Working 24 hours a day non-stop



Suitable, electrical products, IT industry, auto parts, hardware products, precision instruments, gift accessories, medical equipment and other high-end products for precise and fine marking. Typical applications include plastic (PA66) insulation strips flight laser marking, metal plate automatic loading and unloading of laser marking, packaging body line laser marking machines.
