NEMA17 Threaded Rod Stepper 350 or 400 Tr8*8 Leadscrew

$34.00

Specification

Threaded Rod NEMA17 Stepper 40mm lenth, 350mm Tr8*8 Acme Leadscrew with POM Nut
Order No.: 17HS3001-350N.PDF or 17HS3001-350TR8*8

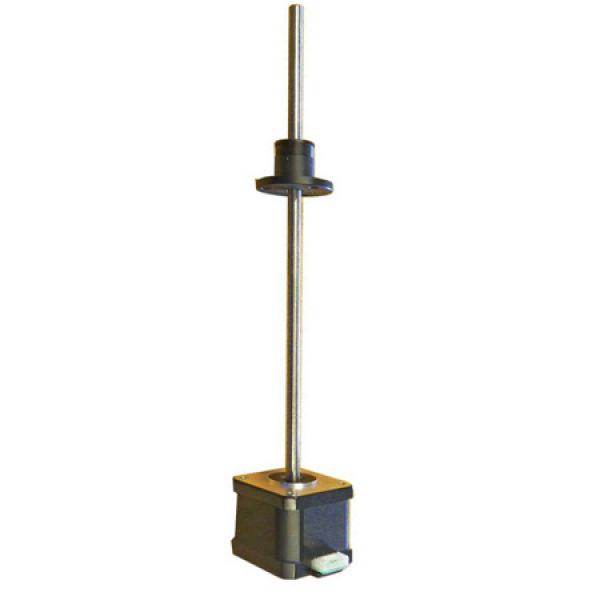

The NEMA17 Threaded Rod Stepper Motor has a precise Tr8*8 Acme Leadscrew coming out directly from the nema17 as Threaded Shaft. It\'s a Z axis solution

200 steps per revolution (1.8 deg/step)
2 Phase, Bipolar, 4 wires
Rated Voltage 2V DC
Rated Current 1.2A
Phase Resistance: 1.7 Ohm ± 10% (20º C)
Phase inductance: 4.5 mH ± 20% (1kHz 1 V rms)
Holding torque: 0.4 N.m Min.
Motor length: 40mm

Acme Lead Screw: 350mm long, Tr8x8(P2)
Nut: POM (You could buy an extra Anti-backlash Nut)

We can do the Acme threaded rod/leadscrew customized length for your specific applications. Also you could have other choice of motor length, diameter, pitch and length of the leadscrew/threaded shaft and a Anti-backlash Nut for this NEMA17 threaded rod nema17.

400mm long linear stepper motor is available in stock for application of high precision 3d printing, cnc router, etc.
