Automatic Extrusion & Cutting System，High-Precision Bead Pelletizing Line，High-Output Fuse Bead Maker

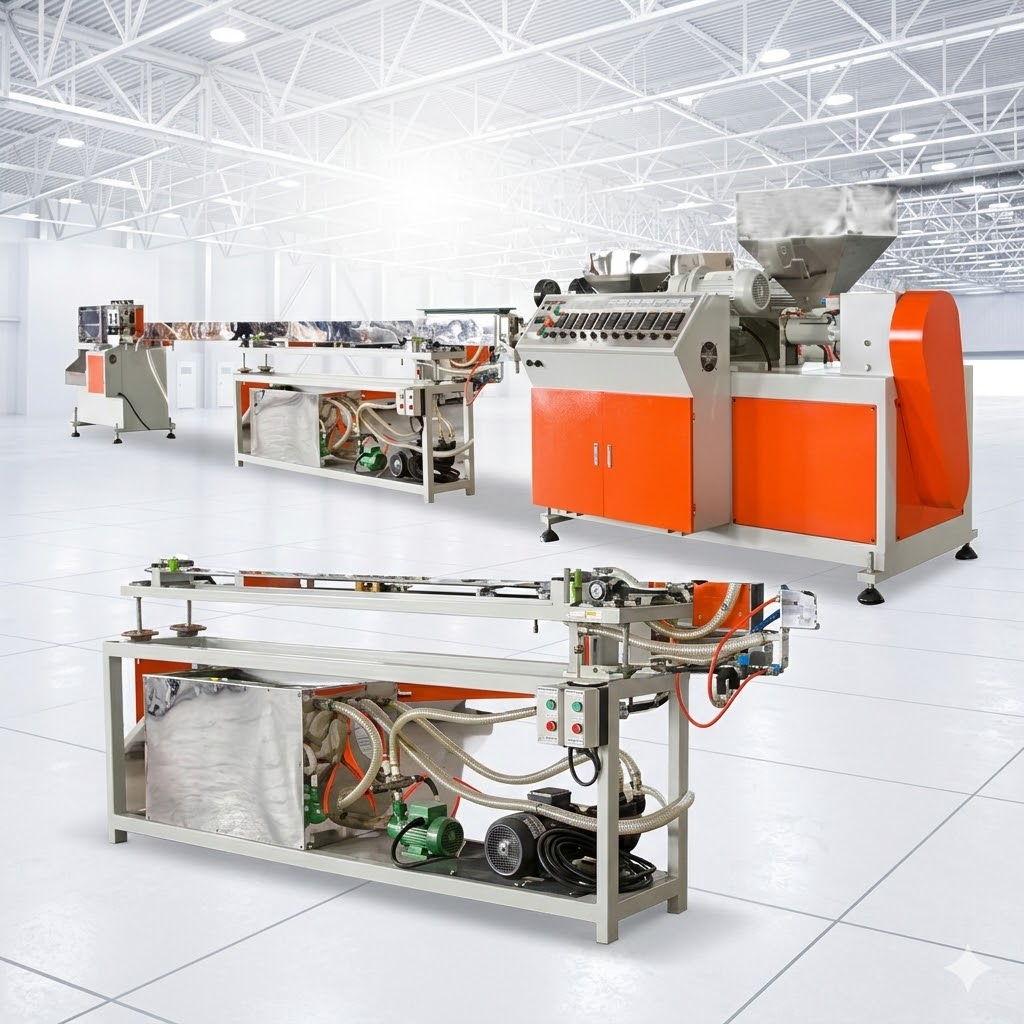

The 45 automatic fuse bead production line includes 4 parts:
1 45 single screw extruder 1 unit
2 mold 1 set
3 vacuum sink 1 unit
4 Servo traction cutting machine 1 unit
Details:
45 single screw extruder
A) Screw
--diameter 45 mm ( for both PP and LD PE granules, use a common screw)
-- Aspect Ratio 25 :1
--Material High-grade nitrided steel 38CrMoAlA
--Surface treatment Nitriding , mirror polishing , chrome plating thickness 0.05mm per side
--Structural Form Gradient
B) Machine barrel
--Material High-grade nitrided steel 38CrMoAlA
--Inner surface treatment Nitriding scouring
--Cylinder cover Stainless steel
--heater Stainless steel heater ( Zone 3)
--Feed inlet of the material barrel Grooving and circulating water cooling
C) Gearbox
--Box Material HT250
--Gear type helical gears
--Gear Material 20CrMnTi (hardened tooth surface grinding treatment)
--shaft material 40Cr
--Lubrication system Pressure lubrication system
--Connection method Belt pulley connection
D) Control System
--Control Method Variable frequency control ( Huichuan frequency converter)
--Control power 7.5 KW
--Heating area District 6
--Cooling system Taiwan multi-blade cooling fan 120W*3
--Wind shield material Stainless steel
--Electrical cabinet type Integrated electrical cabinet
--power supply 380V, 50Hz, three-phase five-wire
Mold
--Mold Materials S136 mold steel

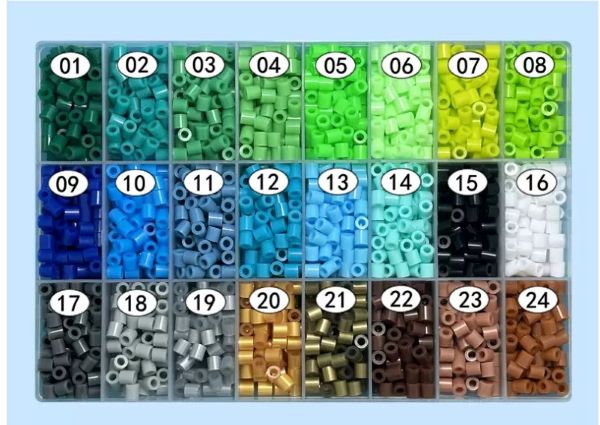

--Product Dimensions Outer diameter 2.6mm, inner diameter 1.4mm, length 3mm
Vacuum cooling water tank
--Sink Material Stainless steel bending and welding forming
--Water tank length 5.6 meters
-- Vacuum section length 6 00mm
--Circulating water tank One, properly connect the inlet and outlet water inlets of the industrial chiller.
--Water pump 550 W , one
--Vacuum pump 2.2KW each
Servo traction cutting machine
--Traction power 0.8KW
--Power cutoff 0.8KW
--Control Method Servo motor controller
--Operation Method Color Touchscreen
--Number of blades 16
Spare Parts and Tools List
1 Scissors / Snips 1
2 Adjustable Wrench 1
3 Allen Key Set (Hex Key Set) 1 Set Φ1.5∼Φ10
4 Screwdriver Set 2 2 each of Phillips (+) and Flathead (-)
5 High-Temp Thermocouple Wire 2 pcs
6 Ammeter 1 20A
7 Temperature Controller 1
8 Barrel Heater Band 2 pcs
