Low profile metal gear 9Kgs Digital Servo

$13.80

Specification

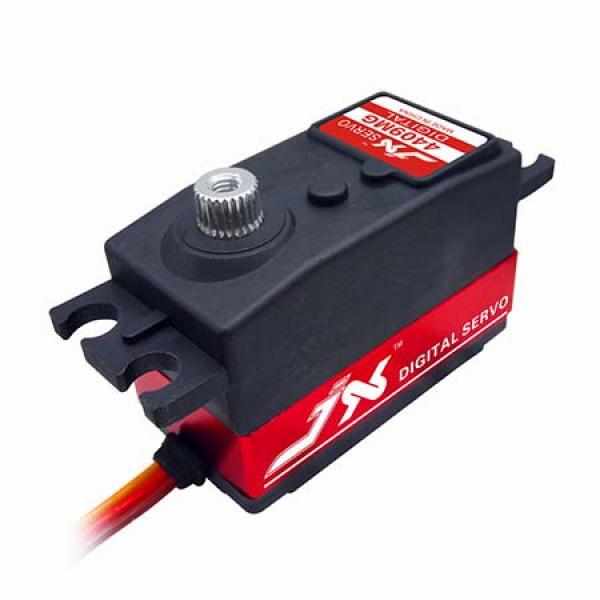

PDI-4409MG

Low Profile Digital Servo

FEATURE:
High performance digital servo
High-precision anodized aluminium gears
CNC aluminium middle Shell
Dual ball bearings
SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.13 sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 7.8 kg/cm
Stall Torque (6V): 9.2 kg/cm

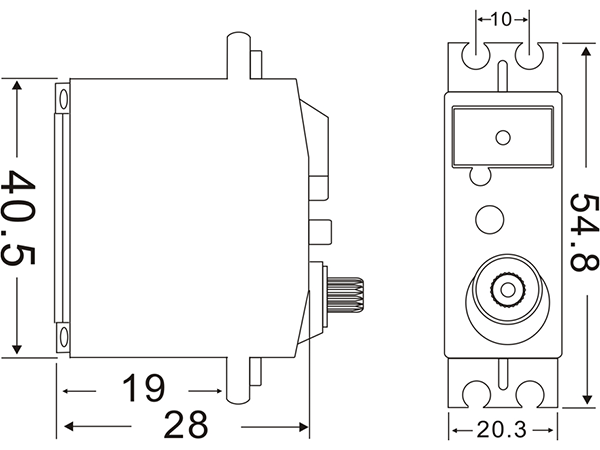

Dimensions: 40.5X20.3X28mm
Weight: 44.5 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Digital Servo
