NEMA23 Captive Linear Stepper Motor

$105.00

Specification

23HS4404-63D104

Captive NEMA23 Stepper Motor Linear Actuator

NEMA23 Captive Shaft Lead Screw Stepper Motor Linear Actuator.
2 phase bipolar NEMA23 56mm length body stepper motor
Step angle 1.8 degree, 200 steps per revolution.
Rated current 3A, 12-48V DC wide range power supply.
Resistance per phase 1.1 Ohm+-10%, inductance per phase 3.3mH+-10%
12.7mm diameter sleeve Tr10*4 lead screw resolution 0.02mm

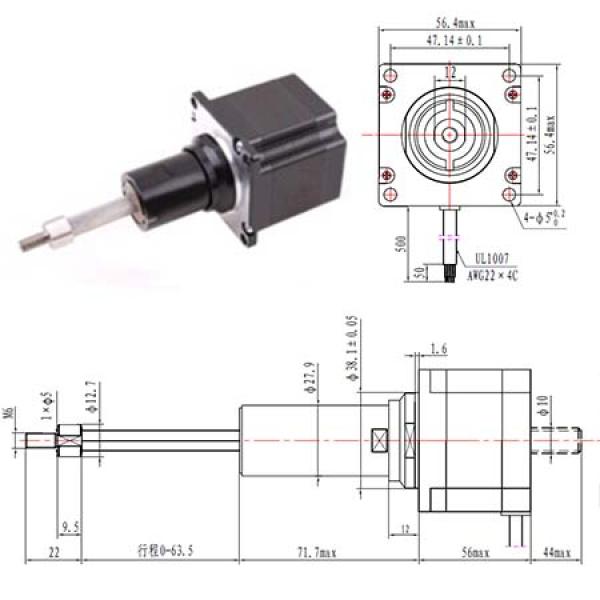

Captive NEMA23 Stepper Linear Actuator
