5V DC Micro Metal Geared Stepper Motor

$9.80

Specification

GA12BY10
GM1024BY10
GM12BY15-M455
GM1024BY10-M455

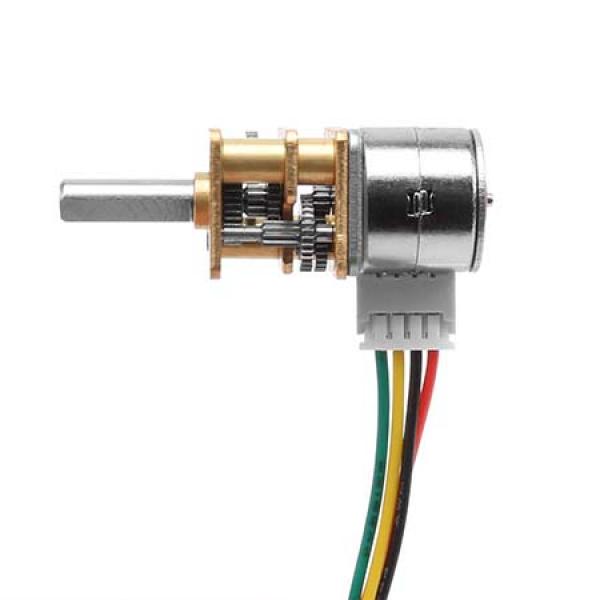

Micro Metal Geared Stepper Motor

This is a miniature stepper motor with 100:1 metal reduction gear box for enhanced torque. It has a voltage input range of 5V DC. This product is suitable for the 3D printers and applications which require precise rotation control. Note: Please limit the motor current, or overlarge current will burn the motor.
micro stepper motor
geared stepper motor
metal gear stepper motor
micro geared stepper motor
Stepper Motor:
Rated voltage: 5V DC (2-7.2)
Coil resistance: 20Ω±10%
NO. Of Phases: 2 PHASES
Step Angle: 18° / Step
MAX.Starting Frequency: 900PPS min
MAX.Slewing Frequency: 1200 PPS min
Pull IN Torque: 6gf-cm min
Lead Out Torque: 10gf-cm max
Stepper Motor with Gearbox:
Step Angle: 18/100° / Step
MAX.Starting Frequency: 900PPS min
MAX.Slewing Frequency: 1200 PPS min
Pull IN Torque: 0.5Kgf-cm min
Lead Out Torque: 0.8Kgf-cm max
Cable Length: 15cm
wiring diagram of micro stepper motor
Other ratio of micro metal geared stepper motor for different speed and torque requests, please email us sales@robotdigg.com
