Semi-automatic or automatic liquid glue dispenser



Chat Online

Glue dispenser

1. Default 220VAC, for 110VAC please leave us message following your order
2. Semi-automatic AD982 can only set timing, automatic JND982A can set timing, interval and frequency.

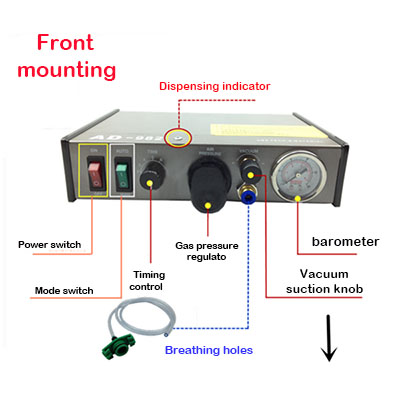

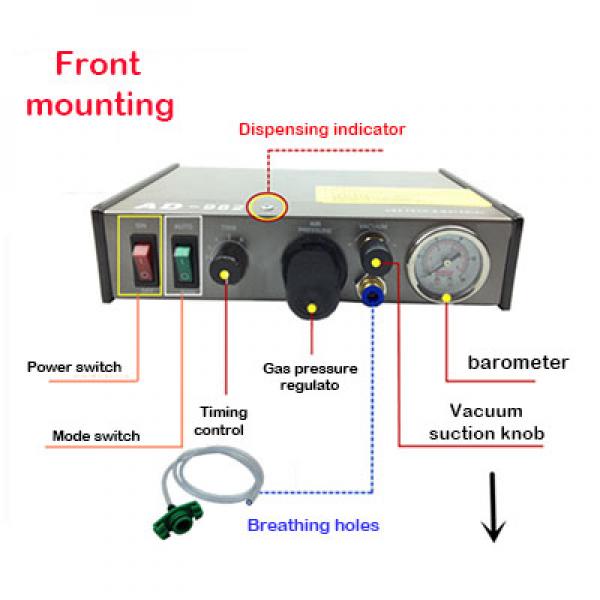

AD982 Glue Machine Product Features
Timing table with 0.18CV constant flow electromagnetic control valve indicator switch adjustable vacuum suction up to 15 inches / mercury (Hg)
Dispensing Materials:Injection of liquid droplets, including quick-drying glue, red glue, yellow glue, epoxy resin, selenium, selenium, selenium, selenium, selenium, Glue, lubricants screw locking glue, flux and tin pulp, complete product support, play note drip function.
Application: automotive electronics, packaging, household appliances, bearings, lighting, electronic components, jewelry and so on
Dispensing back into the host machine glue is man-made damage.
This product needs to connect the air pump. Air pumps are not included in packaging list.
This manual dispenser puts the liquid out by using of high-pressure air in the set time and using foot switch.Can be adjusted manually, semi-automatic state, the use of high-precision digital timing controller, precise control of each titration time, accurate to milliseconds, the correct control of liquid material flow, do not waste liquid material. As long as the adjustment of air pressure, time and select the appropriate needle group, you can change the amount of each drop and drop the time of injection.

Technical Parameters
Power supply: AC 220V ± 10% / 50HZ
Power consumption: <8w
Air source: up to 0.99MPA (clean, dry, non-lubricated air)
Discharge pressure adjustment range: 0.05MPa-0.7MPa
Outstanding time adjustment range: 0.01S-30S, adjustable DIP switch combination, available to a variety of time mode.
Function mode: manual mode adjustable negative pressure control to 600 mm Hg repetition accuracy and spit frequency
Accuracy: ± 0.05% Frequency: 600 beats / min
The minimum spit volume: 0.01ml
Dimensions: 235mm * 225mm * 63mm
Weight 2.9K

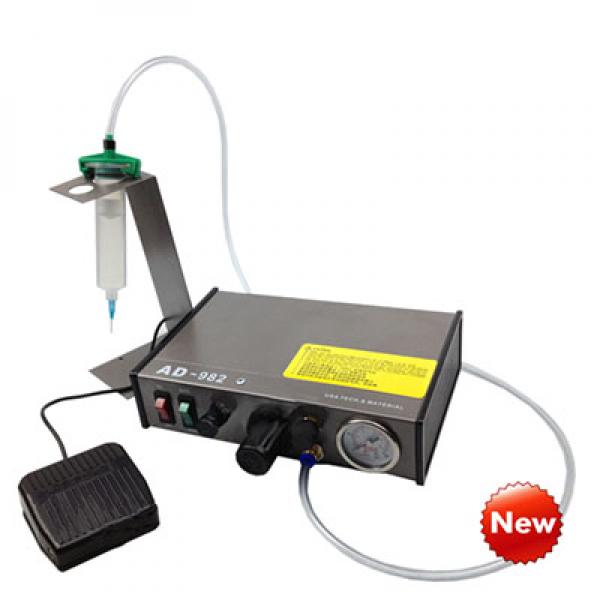

AD982 Glue Dispenser

JND-983A Glue Machine Features
Dial the code control out of the quantity of cement and time interval between, digital shows dispensing quantity, the be clear at a glance.
The constant flow control valve CV 0.18 electromagnetic Indicator light switch Can adjust the town for up to 15 inches air suction/mercury (Hg)
Exquisite pedal switch Could purchase all kinds of spare parts.

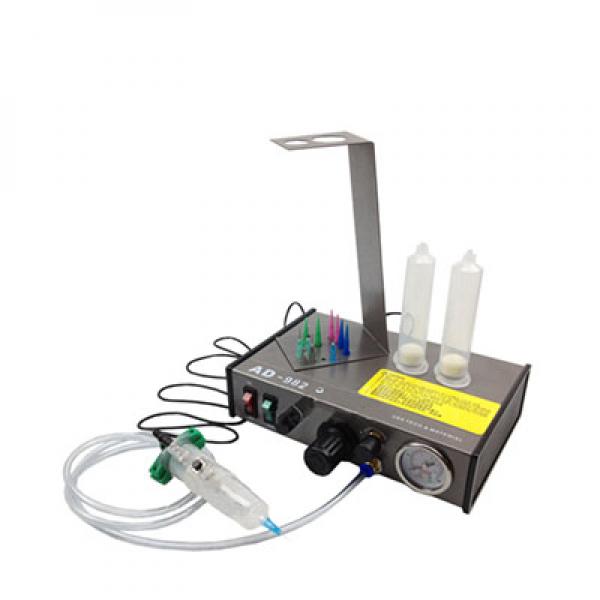

Send accessories:12 needle, needle tube 3, Transfer block 1, Bracket 1, 1 manual switch, 1 foot switch, power cord 1.
Technical Parameters
Power supply: 220V 10%/50Hz + AC 110V 10%/60Hz + AC (internal conversion)
Power consumption:12W
Air source: maximum 0.99MPa (clean dry air)
Spit pressure regulation range: 0.05MPa--0.99MPa
Function mode: manual mode and 16 kinds of free setting mode
Spit time adjustment: automatic timing spit out 9.999S 0.01S-99.99S/0.001S- two group
Spit time display: four LED display, can be free to fine tune the amount of spit
Time regulation: 0.1-9.9S
Vacuum back suction function: adjustable negative pressure control to 600 mm Hg
Repeat accuracy and frequency of spit: accuracy: +0.01% frequency: >800/min
Minimum spit amount: 0.0001ml
Dimension: 235mmx225mmx63mm
Weight: 3kg Volume Weight: 7KG
