MKS HLKWIFI or TFTWIFI Module for 3D Printing

$7.00

Specification

MKSWIFI
TFTWIFI

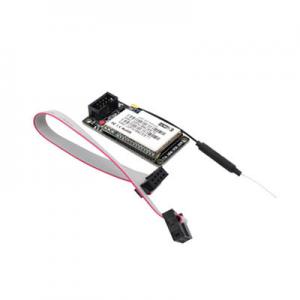

MKS HLKWIFI Module is based on HLK-RM04. It works with MKS TFT 2.8 LCD Smart Controller for remote control of 3d printing.
MKS-HLKWIFI is created by MakerBase(MKS) based on HLK-RM04 module, which is suitable for open-source 3D printer . Also, MKS-HLKWIFI is used for MKS Base (updated version 1.2), MKS Gen, MKS Mini, MKS SBase, etc, those are developed by MakerBase , as well as MKS TFT touch screen.
Features
1. Based on strong and stable HLK-RM04 module.
2. Using on MKS motherboard directly.
3. Work with MKS TFT touch screen.
Notice: Due to undercurrent, MKS HLKWIFI can not work with Ramps1.4.
Please visit our github to download firmware:
github.com/makerbase-mks
Connection
1.Connect to Aux-1 of MKS TFT28.
2. Connect to Aux-1 on MKS BASE, MKS MINI, MKS SBASE, MKS GEN.
MKS BASE only supports V1.2 updated version.
Appendix 1
Usage on Motherboard
1.Connect WIFI module to AUX-1
2.Search for WIFI hotspot and connect.
1).Search hotspot HI-LINK-XXXX, and connect. Password: 12345678;
2).If you can not find the hotspot , press on button of module for 10 seconds, then restore factory settings.
3).Attention: under default , the baud rate of HLKWIFI is 115200, which must be as the same as firmware.
3. Configuration on MKS HLKWIFI
1).After enter HI-LINK-XXXX, connect to IP: //192.168.16.254;
2).Log in : accounts: admin; password : admin.
3).Proceed network configuration and modify the Client you need.
4).Any other help, please refer to HLK-RM04 user manual 1.31.pdf.
3D Printer wifi

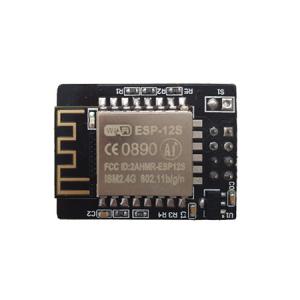

New arrival: MKS TFT LCD Wifi Module for 2.4, 2.8 or 3.2 inches MKS TFT LCD Controller.
This wifi module is created and developed by Makerbase, which is capable of high transmission rate and stability.
And, it is compatible greatly with MKS TFT24, MKS TFT28, MKS TFT32 display.
It not only supports document transfer via APP, but also supports Cloud printing and firmware upgrading.
Packing List
1*MKS TFT-WIFI module V1.0
Specifications
Size: 32*24mm
Language: EN/CN (Auto-ID)
WIFI module plugs on MKS TFT display
MKS WIFI
