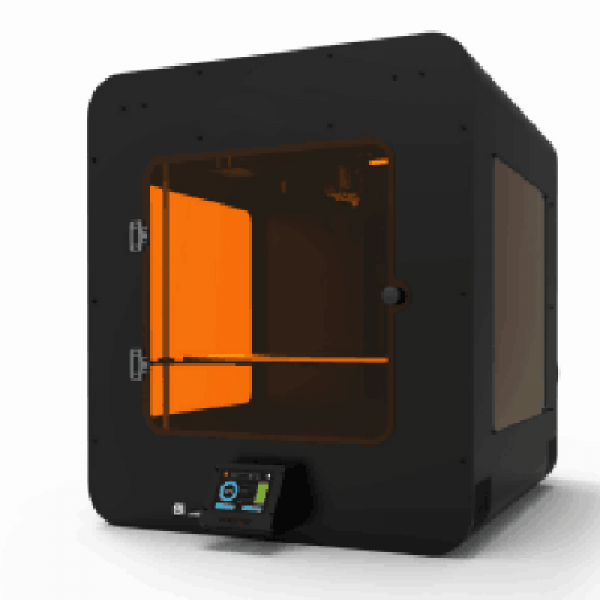

Kentstrapper ZERO

$3088.00

Specification

Origin: Italy

MAIN FEATURES
Printing area: 260 x 260 x 280 mm
Layer thickness: 0.040 mm - 0.320 mm
Temperature of extruder: 180° C-260° C
Supported materials: 1.75 mm ABS, PLA, Laywood, Laybrick Nylon, PET, XT, XT-carbon and other thermoplastic materials compatible
Dimensions: 560 x 430 x 420 mm
Power supply: 12V 5A - 230V A

X Y and Z resolution: 12.2-5 micron

Hbot:X Y Z movement

Temperature of print bed: 50-100° C

Nozzle diameter (mm): 0,406mm 100k Glass NTC and stepper 5 stepper motors NEMA17

Max print and movement speed: 10-300mm/s

Extruder with interchangable Nozzles: 0.4-0.8mm

Power Supply 12V 5A - 230V AC


Resolution:three stepper motor has been used for the movement of Z axis that move three trapezoidal rod with a maximum resolution of 5 micron. Thanks to this the 3D printer Zero can reach the layer resolution of 20 micron.

Autocalibration: The most complicate part in the use of a 3D printer is the calibration procedure of the print bed. We searched a solution for this problem and we develop our auto calibration system. Now automatically and in only 150 seconds, Zero 3D printer calibrate the print bed and begin the printing process.


Warrenty on every components (extruder excluded) 12 months

NOTE

This printer will be shipped from Italy Kentstrapper directly

Shipping within 30 days after full payment
