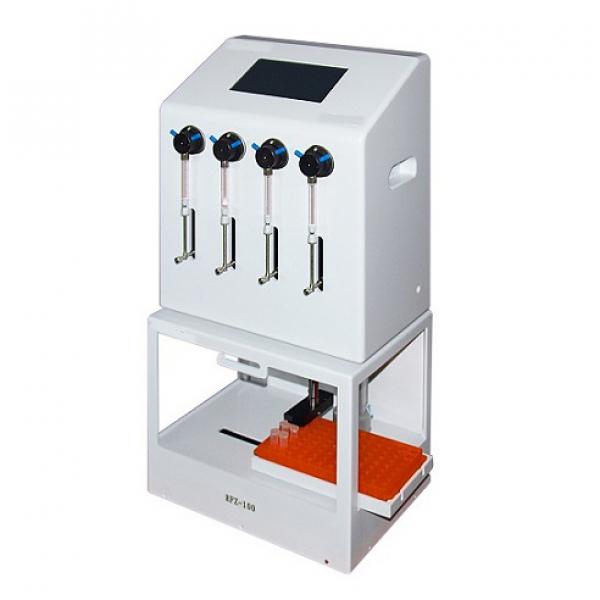

RDGRFZ-100 automated liquid dispensing system, pipetting workstations, perforated plate packing
RFZ series automatic liquid dispensing system is richer Electric Division launched a new generation of multi-function liquid dispensing equipment, high-strength and corrosion-resistant shell Y-ceramic rotary valve is done by pure imported materials Seiko production, the choice of high-speed chip, a new generation of power plant propeller and 7-inch color touch screen provides high precision experiments stable and secure; RFZ series automatic liquid dispensing system is a single agent, double agent and multi-agent (supports up to four different reagents) dispensing automatic mode; system stable, accurate and efficient; easy to operate, simple, fast; among the various types of laboratory and industrial equipment belong choice.

Multi-industry: Can be used for chemical analysis, environmental analysis, pharmaceutical analysis, clinical medicine, biotechnology, molecular biology, food industry;

Typical customer: environmental, petrochemical, marine, construction and steel industry analysis center; measurement, quality inspection and environmental agencies; hospital, CDC, blood and forensic identification center; chemical, biological and pharmaceutical laboratories and other professional; chemical plant , pharmaceutical and pesticide factories and other enterprises;

1. Digital control automatic pipetting precision dispensing, avoid human error.
2. The system maintenance functions: system filling; cleaning system; the system evacuated.
3. Guided calibration function, according to the instrument calibration prompt realization of the syringe.
4. Chinese user interface.
5. Custom input method, the use of large numbers, text and symbol keys, task parameters easily enter.
6. Smart Task setup and maintenance functions, complex liquid handling tasks an easy interface to complete.
7. The task is automatically saved and loaded, save an unlimited number of tasks.
8. The four-channel syringe synchronization, improve operational efficiency.
9. Optional any channel combination work (not more than four channels), reinforced packing compatibility.
10. All piping and fluid path components exposed to the outside of the instrument, easy removal and replacement, which will help install the fluid path system, disinfection, cleaning, and maintenance.
11. The ceramic rotary valves, reagent compatibility, and no dead volume.
12. The fluid channel material: Teflon (Teflon), ceramic, borosilicate glass.
13. The full LCD touch screen (7 inches) operation, external mouse and keyboard can also be convenient to operate.
14. Reserved TTL232 / RS232 interface directly controlled by an external computer;

★ technical indicators:

1, compatible injector Model: You can use a variety of models syringe, 250μl, 500μl, 1ml, 2.5 ml, 5 ml, 10 ml and 25 ml.
2, tube rack (compatible plate): 96/72 holes (customer-defined use, a variety of compatible)
3, liquid handling volume: 10μl-25ml
4, Accuracy: ≥99% (ie deviation<1%)
5, precision (repeatability): ≤ ± 0.1%
6, syringes effective working distance: 60mm, error ± 1mm
7, incremental volume: total capacity syringe 0.1% to 100%
8, the push rod piston speed: 2-14mm / s, the maximum capacity of the syringe plunger speed and viscosity of the liquid and the dosing requirements for adjustable speed.
9, and out of fluid velocity (recommended): 0.5mL / min-80mL / min
10, dispensing time / time: 2-3s (according to the size of a single flow changes)
11, operating temperature: 5 ℃ -40 ℃
12, humidity range: 10% -90% non-condensing (avoid static)
13, the atmospheric pressure: 700hPa-1060hPa
14, Power: 220V-24V / 36V, 120W
15, Weight: about 16.5Kg
16, Size: 336mm × 240mm × 690mm (length × width × height)
★ configuration list:
1. The host 1 (built-in LCD touch screen Chinese control software system)
2. imported original syringe (5ml) 4 pcs
3. USB- port data lines one side
4. The power cord (220V-24V / 36V) 1 pc
5. hose (1/16 inch) outside diameter 12 m
6. O-ring 5 * 1.5 16 (2 sets)
7. Miscellaneous: PC (WindowsXP) software installation CD 1; User Manual 1; 1 single receipt service; factory certificate 1; 1 small parts bag
FOB Shanghai, Delivery Date: 15 working days after payment
