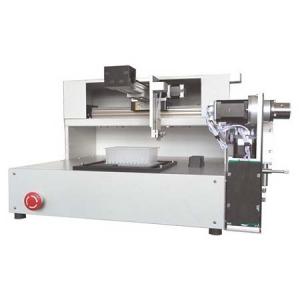

Automated liquid dispensing systems

$19200.00

Specification

RDGRFZ500

Technical Parameters

1, compatible injector Model: You can use a variety of models syringe, 250μl, 500μl, 1ml, 2.5 ml, 5 ml, 10 ml and 25 ml.
2, tube rack (compatible plate): 96/72 holes (customer-defined use, a variety of compatible)
3, liquid handling volume: 10μl-25ml
4, Accuracy: ≥99% (ie deviation<1%)
5, precision (repeatability): ≤ ± 0.1%
6, syringes effective working distance: 60mm, error ± 1mm
7, volume increment: Syringe total capacity of 0.1% -100%
8, the push rod piston speed: 2-14mm / s, the maximum plunger speed and needle capacity, liquid viscosity and dosing requirements for adjustable speed.
9, and out of fluid speed (recommended): 0.5mL / min-80mL / min
10, dispensing time / time: 2-3s (based on a single flow size changes)
11, operating temperature: 5 ℃ -40 ℃
12, humidity range: 10% -90% non-condensing (avoid static)
13, the atmospheric pressure: 700hPa-1060hPa
14, Power: 220V-24V / 36V, 120W
15, Weight: about 36Kg
16, Size: 590mm × 430mm × 383mm (length × width × height)

★ configuration list:

1. The host 1 (with 10-inch touch screen, built-in LCD touch screen Chinese control software system) 2. imported original syringe (10ml) 5
3. USB communication cable 1
4. The power cord (220V-24V / 36V) 1
5. hose (1/16 inch) outside diameter 10 m
6. O-ring 5 * 1.5 10
7. Other: PC (Windows System) software installation CD 1; User Manual 1; after-sales single receipt 1; factory certificate 1; small parts Pack 1
Delivery Time : 15 working days FOB Shanghai
