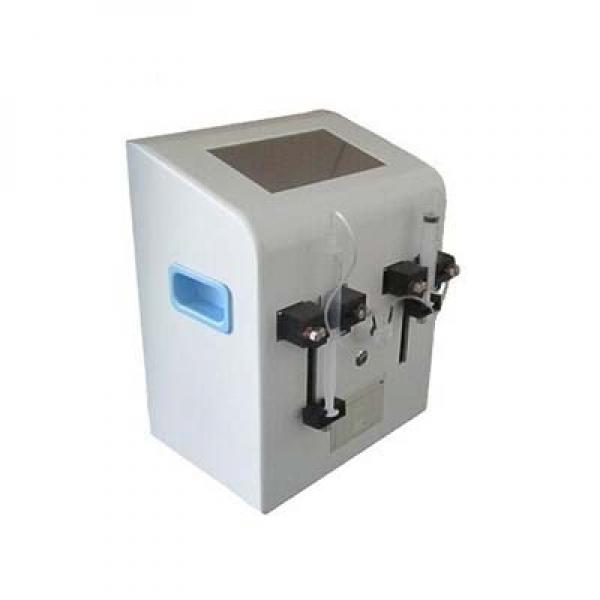

Dual-pump controlled dilution machine

$6250.00

Specification

RDGRXS-200

Functional Features
1, the inner diameter of the injector input, optionally used syringes 10-50mL
2, the accuracy can be achieved 0.01mL, to meet the vast majority of experiments required
3, touch-screen control interface WinCE6.0
4 operating modes: irrigated mode
5, external control interface: TTL232 / RS232, with input and output control function
6, fluid volume calibration function: Through calibration procedure results in a more accurate flow

Technical Features
1, for syringe sizes: 10 - 50mL optional
2. Accuracy: ≥99% (ie deviation<1%)
3, precision (repeatability): ≤ ± 0.1%
4, piston speed: 0 - 80 mL / min, the maximum capacity of the syringe plunger speed and viscosity of the liquid and the dosing \requirements for adjustable speed
5, the effective dilution: 0.8 - 0.001 Adjustable
6, the liquid channel material: Teflon (Terflon), fluororubber (Viton), high density polyethylene (PE)
7, the system dimensions: length 265 * W 213 * H 330mm
8, Weight: 10.7Kg
9, voltage: 24V / 100W
10, operating temperature: 5 to 40 degrees Celsius
11, Storage temperature: -20 to 50 degrees Celsius
Delivery: 20 days after payment
FOB Shanghai
