Desktop Flat Plate Vulcanizer
Upgrade your production capabilities with our advanced Hydraulic Plate Vulcanizing Machine. Specifically designed for hot pressing molding of PVC, plastic, rubber, and silicone products, this equipment ensures precision and efficiency in your manufacturing processes.
Key Features:
Versatile Application: Ideal for PVC, plastic, rubber, and silicone products.
Hot Pressing Molding: Achieve precise and consistent molding results with the hot pressing technology.
Hydraulic System: Equipped with a reliable hydraulic system for efficient and powerful operation.
High-Quality Construction: Sturdy and durable design ensures long-lasting performance.
Enhanced Productivity: Improve production efficiency with advanced vulcanizing technology.
Specifications:
Material Compatibility: PVC, Plastic, Rubber, Silicone
Molding Technology: Hot Pressing
Hydraulic System: Yes
Construction: Sturdy and Durable
Elevate your manufacturing processes with the Hydraulic Plate Vulcanizing Machine, designed to meet the demands of modern production environments. Ensure precision and quality in every molding operation.

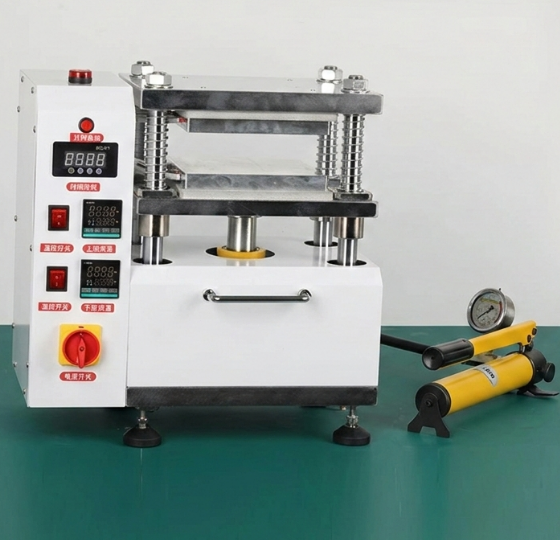

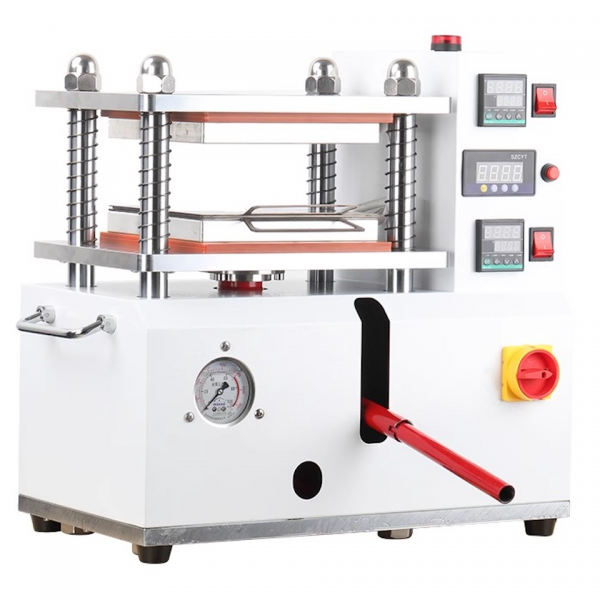

RD-LHY01 Flat Vulcanizer
Machine Specifications:
Model: RD-LHY
Plunger Stroke: 60mm
Operation Type: Manual Lever Hydraulic Pressing
Hydraulic Pressure: 10T
Temperature Range: 50-350°C (Adjustable, Double-Layer Independent Temperature Control)
Voltage: 110V/220V AC
Timer: 100-Minute Countdown with Beep Reminder
Power: 1500W
Heating Plate Size: 180mm x 180mm
Net Weight: 53KG

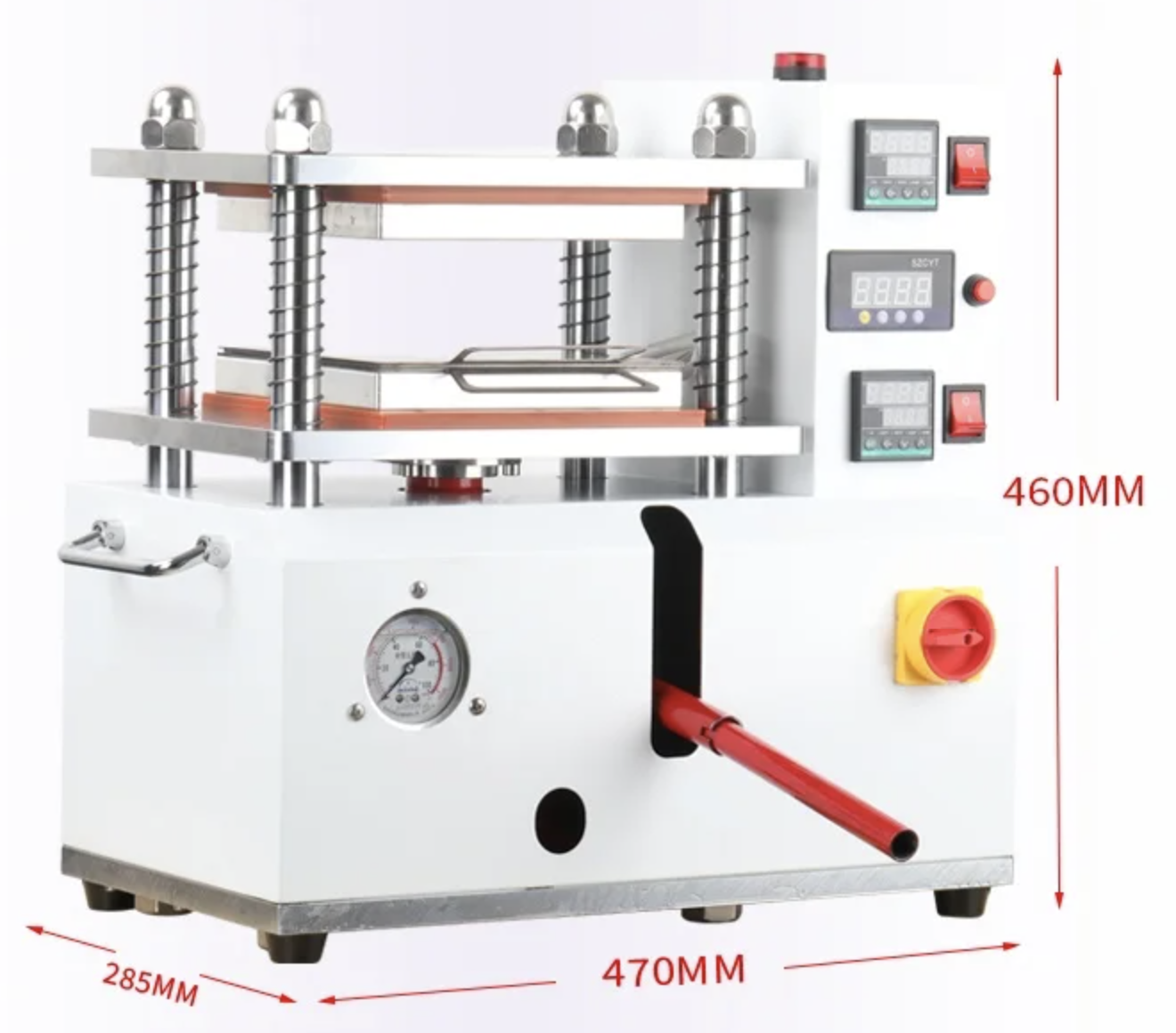

Machine Size: 470mm x 285mm x 460mm
Package Weight: Approximately 65KG
Key Features:
Efficient manual lever pressing operation
Adjustable temperature range for versatile applications
Double-layer independent
These machines are specifically engineered to process plastic granules, rubber, and silicone to test material characteristics such as:
Vulcanization Characteristics: Determining "scorch time" and "positive vulcanization time".
Physical Property Testing: Analyzing material hardness and tensile strength.
Educational & Research Use: Ideal for higher education institutions and scientific research organizations for teaching demonstrations or material science research.
Small-Batch Production: Capable of preparing small-scale samples for industrial testing.
RD-LHY01
Feature Specification
Heating Plate Size 18 x 18 cm
Hydraulic Pressure 10 Tons
Power Consumption 1500W
Piston Stroke 7 cm
Temperature Range Up to 350°C
Machine Weight 55 Kg
RD-LHY02
Feature Specification
Heating Plate Size 18 x 18 cm
Hydraulic Pressure 10 Tons
Power Consumption 1500W
Piston Stroke 8 cm
Temperature Range Up to 350°C
Machine Weight 92 Kg

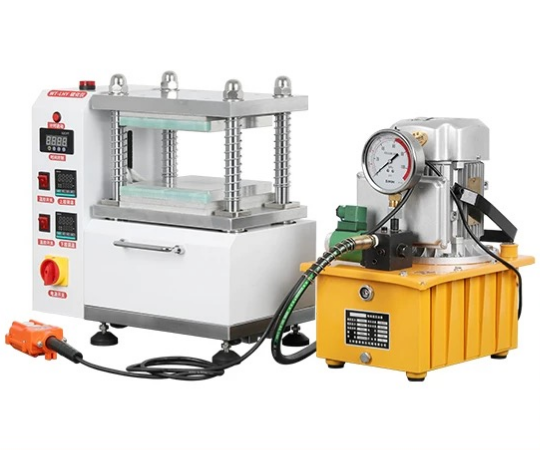

RD-LHY-E
The RD-LHY-E is a benchtop, electric-powered unit designed for high-precision rubber molding.
Heating Plates: Features a double-layer heating plate system measuring 18 x 18 cm.
Pressure & Power: Provides 10T of hydraulic pressure with a power rating of 1500W.
Stroke & Temperature: Has a piston stroke of 8 cm and a maximum temperature range of ≤ 350°C.
Control Systems: Includes independent temperature controls for upper and lower plates and a digital time controller.
Weight: The machine weighs 92 Kg.
Accessories: Comes with a standard set of sandwich plate molds.
