Extendable micro flow high precision peristaltic pump



Chat Online

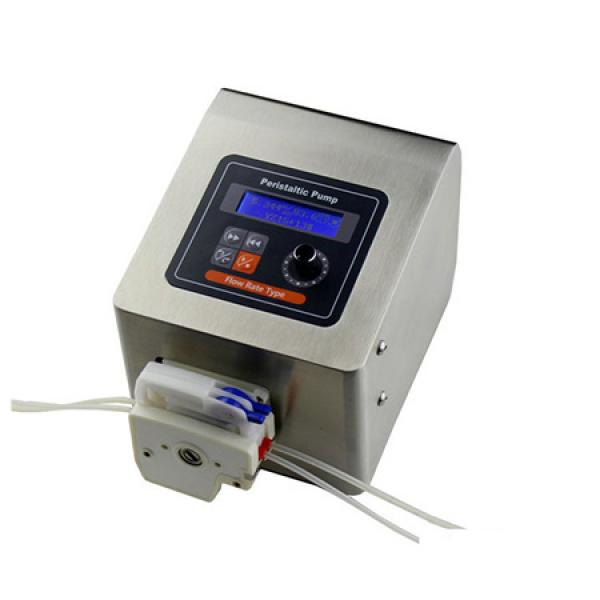

BT100-1L+DG-1A Flow type Peristaltic Pump

Flow range: 0.0002-48mL/min
DG series、YZ series、BZ series;DG series pump head suitable for slight flow transportation
Various pump head for optional
Flow rate and speed display in the same screen, flow rate rectify function
Membrane keypad with import encoder operation, convenient and reliable
Flow accuracy within 0.5%
304 Stainless steel shell
Lab, Pharmaceutical machine
CPU ARM Cortex-0 Core,STM32 Chip
Motor drive chip SANYO THB6128 drive chip
Speed adjustable range 0.1-600RPM
Speed resolution 0.1(<100RPM), 1(≥100RPM)
Display function 128×32 Dot matrix LCD display, flow rate and speed display in the same screen
Direction control Clock-wise/counter clock-wise direction reversible
Operation mode Rotating code switch combine with Membrane keypad adjust the speed, also support external signal adjust speed
Full speed function Full speed button to realize fast filling and drain
Power-down memory function After power on, running as before
Calibration function Flow rate rectify function, convenient and fast
External control function Different model external control module for Start/Stop, direction, flow rate; 0-5V、0-10V、4-20mA、0-10KHz 4 module for option
Communication function Optional communication module, RS485 communication control (via Modbus protocol)
Output function Start/Stop, direction output, frequency 0-10KHz OC door output
Foot switch control Optional
Power Consumption 70W
Power supply Wide voltage AC90-260V,50Hz/60Hz
Operation condition Temperature 0 to 40 °C, Relative humidity < 80%
Driver weight 4.2KG
Protect IP Grade IP31
multi-channel micro peristaltic pump
persitaltic pump lcd display

BT100-1L can set flow and speed to display flow and speed, with flow calibration function
BT100-2J, the speed can be adjusted by pressing the button and the speed can be displayed. The flow can be controlled by adjusting the speed, and the flow can be referred to the flow chart
Peristaltic pump flow chart
