BLDC Servo Motor with CANBus or RS485 driver NEMA23

57AIM15
57AIM15C
57AIM30
57AIM30C
57AIM30B
57AIM30CB
60AIM40F
Size:
RS485
Color:
50W 0.5N.m
Weight:
0.600Kgs
Size:
EasyCAN
Color:
50W 0.5N.m
Weight:
0.600Kgs
Size:
RS485
Color:
100W 1N.m
Weight:
0.750Kgs
Size:
EasyCAN
Color:
100W 1N.m
Weight:
0.750Kgs
Size:
RS485, with Brake
Color:
100W 1N.m
Weight:
0.900Kgs
Size:
EasyCAN, with Brake
Color:
100W 1N.m
Weight:
0.900Kgs
Size:
Square NEMA24
Color:
200W 2N.m
Weight:
1.450Kgs

$73.00

Chat Online

BLDC Servo Motor CANBus or RS485 Protocol

Compact design 15 bit absolute encoder
Integrated driver built-in
EasyCan 1Mbps, Modbus RS485 19200 baud rate
Pulse and Direction Position Mode
PWM Speed Mode
Size 42 to 80 BLDC Servo Motor datasheet available
https://drive.google.com/drive/folders/1EglwZjKlH2eS8szpqdQ2DsydYS1IkzT0?usp=sharing
57AIM15C and 57AIM30C, 1000RPM 50W and 100W, 0.5N.m and 1N.m

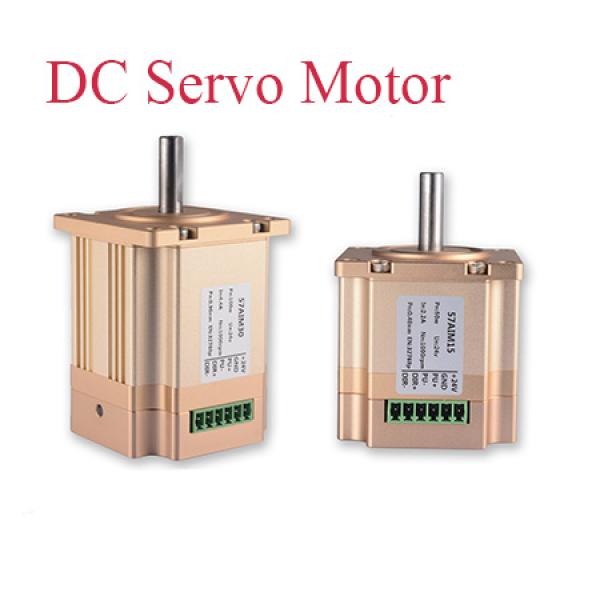

DC Servo Motor
Robot Arm Motor
To build your own Robotic Arm, this DC Servo Motor is better option than Stepper Motor, we have experienced that for you.
Robotic Arm Servo Motor
In the 6 DOF robot arm, the black motor is NEMA17 DC Servo Motor and the gold one is NEMA23 DC Servo

Power supply: 24-36VDC
Current: 57AIM15C 2.2A, 57AIM30C 4.4A
Torque: 57AIM15C 0.5N.m, 57AIM30C 1N.m
Rated speed 1000RPM and max 1500RPM

How to wiring to the 5-axis controller board?
PU+, DIR+ to 5V
PU- to XP-X
DIR- to XD
Servo Motor Wiring
