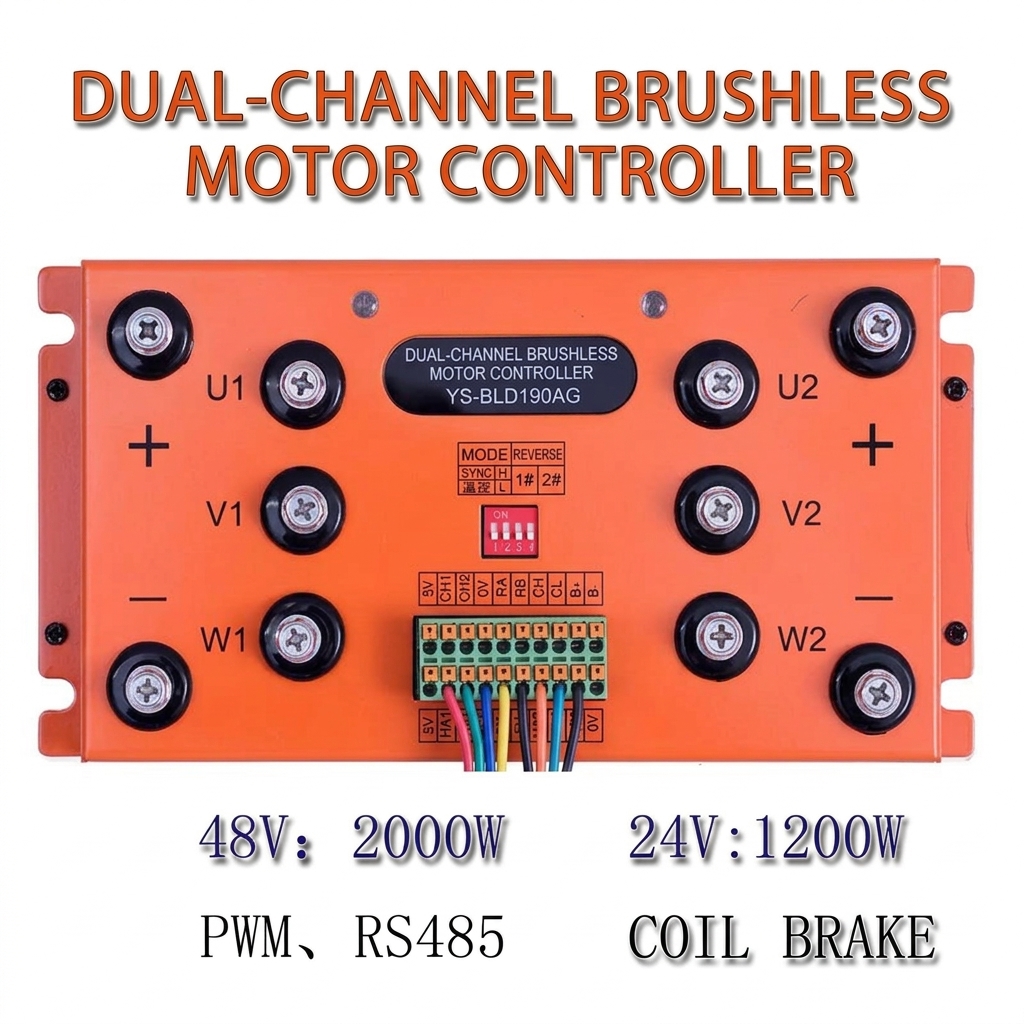

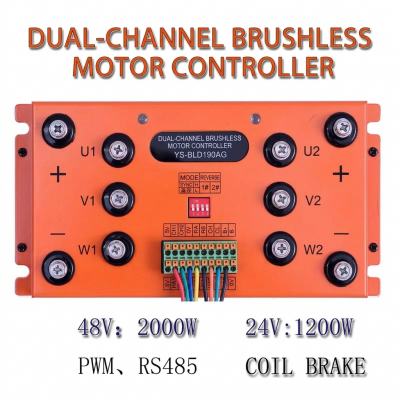

Dual channel BLDC motor controller

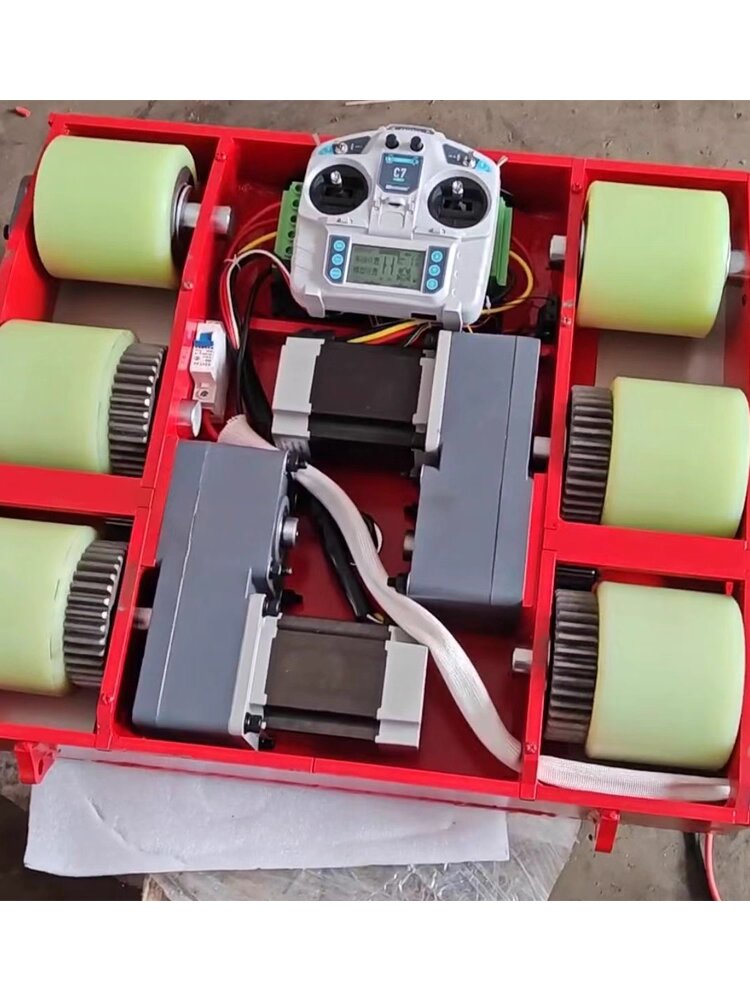

Dual-channel Brushless Motor Controller is suitable for use with remote-controlled tracked vehicles, lawnmowers, transport vehicles, ground tanks, and model aircraft motors.
BLD2C1000
24V Version
Voltage: 10-45V
Current: 60A (single channel)
Control: PWM, RS485
Protection: Overcurrent protection, Stall protection
Dimensions: 200 x 87 x 60 mm
Compatible Motors: Two 800W, 24V motors
48V Version
Voltage: 10-80V
Current: 40A (single channel)
Control: PWM, RS485
Protection: Overcurrent protection, Stall protection
Dimensions: 200 x 87 x 60 mm
Compatible Motors: Two 1000W, 48V motors
BLD2C1200
24V Version
Voltage: 10-45V
Current: 80A (single channel)
Control: PWM, RS485
Protection: Overcurrent protection, Stall protection
Dimensions: 200 x 130 x 60 mm
Compatible Motors: Two 1200W, 24V motors
48V Version
Voltage: 10-80V
Current: 50A (single channel)
Control: PWM, RS485
Protection: Overcurrent protection, Stall protection
Dimensions: 200 x 130 x 60 mm
Compatible Motors: Two 1200W, 48V motors

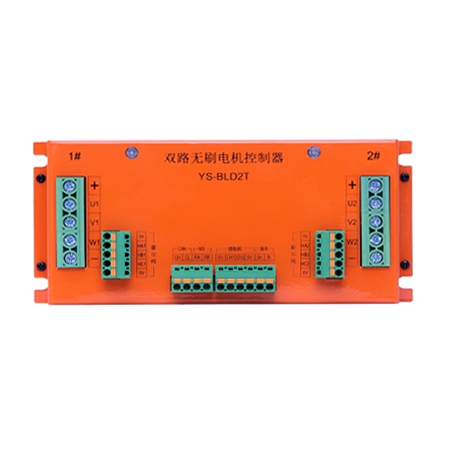

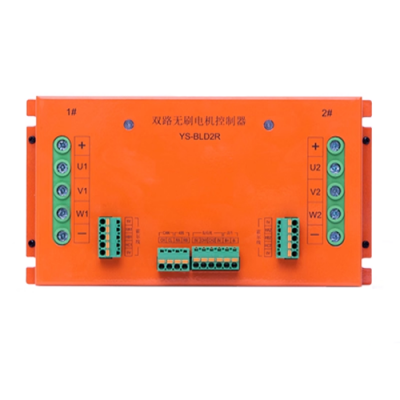

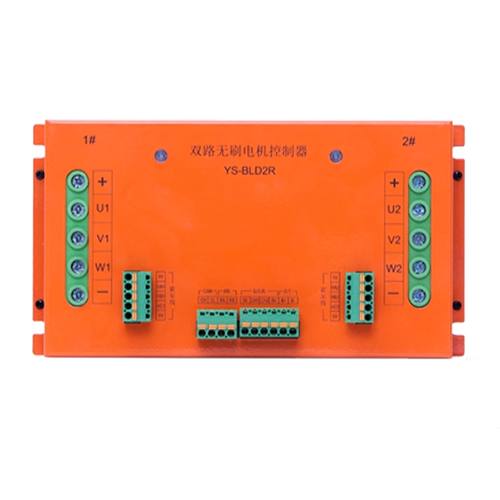

BLD2T and BLD2R are versatile and high-performance dual-channel brushless motor controllers, designed to efficiently manage two separate brushless DC motors. With a wide operating voltage range of 15-80V, this controller is suitable for a variety of applications.
Key Features:
Dual-Channel Control: Independently control two brushless DC motors from a single unit.
High Power Output: Available in two models to match your power requirements:
90A Model (2KW): Supports two 2000W motors, with a single-channel current of up to 90A.
50A Model (1KW): Supports two 1000W motors, with a single-channel current of up to 50A.
Built-in Safety: Features automatic temperature protection, activating at 80°C and deactivating at 50°C to ensure safe and reliable operation.
Automatic Braking: The controller includes an automatic brake function for enhanced safety and precise motor stops.
Flexible Control Options: Offers multiple control ports including PWM, CAN bus, and RS485 for easy integration into various systems.
Compact & Durable Design: The controllers are built with a robust, rectangular housing for long-lasting performance. They feature mounting holes for easy installation.
