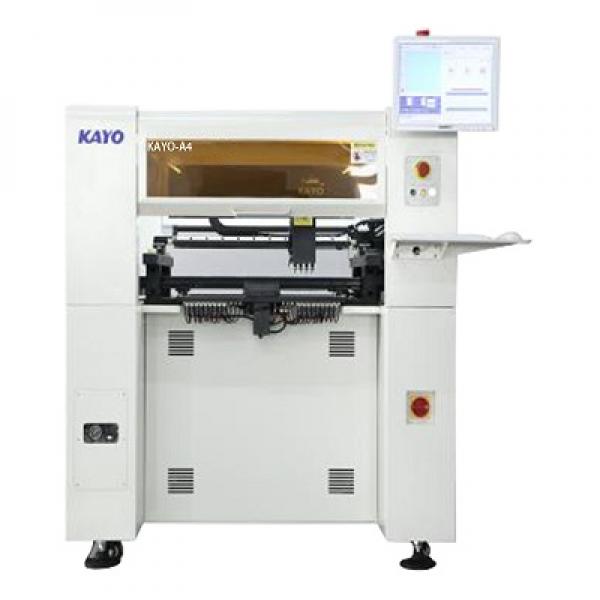

KAYO-A4 4 Heads Automatic SMT PnP Machine

$9900.00

Specification

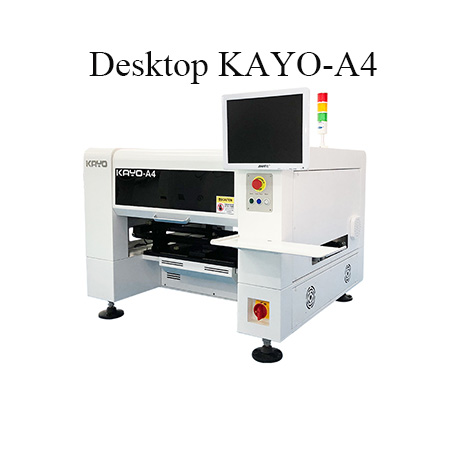

KAYO-A4

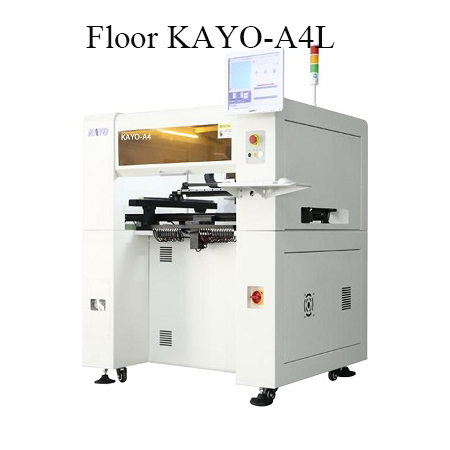

KAYO-A4L

Pick and Place Machine

Product Advantages:
1. Optimized multi-functional conveyor belt (best positioning + no impact stopping), adopt a laser sensor rather than mechanical stopper to position. No rely on the PCB board size, shape, achieve the best positioning and no impact stop.
2. High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.
3. Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.
4. Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide and ball screw, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

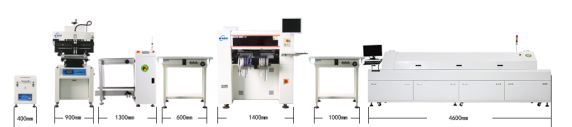

5. High degree of automation: Equipped with precise transmission guide, automatically input boards and output boards connecting to inspection conveyor after mounting. No need manpower, greatly improving efficiency.
Product Specification:
Feeder No. 46 (Front 20, rear 2
Product Weight 450KGS
Mounting Heads 4 (No need to change Nozzle) XYZ Drive Guide Rail TBI High-precision heavy-duty straight-line guide rail
Average Power 600W
Positioning Accuracy 0.01mm Motion Drive System Panasonic High speed DPS driver
Nozzle Buffering Range 5.0mm Operating System Support Windows XP, Win7 operating system
Power Supply 220V, 50Hz Component Angle 0~360°, synchronized rotation in motion
Compressed Air 0.5-06Mpa X/Y Running Mode Imported TBI high-precision ball screw + imported TBI heavy-duty linear guide
Driving Motor Panasonic servo motor
Recognition Method 4 heads recognize synchronously Placement Mode Manual, semi-automatic, fully-automatic
Nozzle Vacuum Source High-speed on-off vacuum generator with vacuum damage Alarm when open the cover Reducing speed or out of service
Max. Circuit Board Area 480x300mm
Board Input Method Automatically connect loader and position PCB transmission
XY Max. Movement Range 556x680mm
Rail Guide Adjusting Method Manual + Automatic Z Axis Max. Movement Range 20mm
Visual Display  15" industrial control display ratio 4:3, resolution 1024x768
Belt Type Feeder 8/12/16/24/32mm feeders, stick feeder Programming Mode Point-to-point programming, visual programming, PCB file coordinates inputting, etc.
Max. Mounting Speed 8000CPH Average Mounting Speed 6000CPH (Visual)
Recognition Camera No. 1 Mark recognition camera, 4 high speed recognition camera, 1 high-precision recognition camera
Dimensions 1095x1165x1400mm
Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 45mm*45mm range pin pitch ≥0.3mm QFP, BGA etc.
