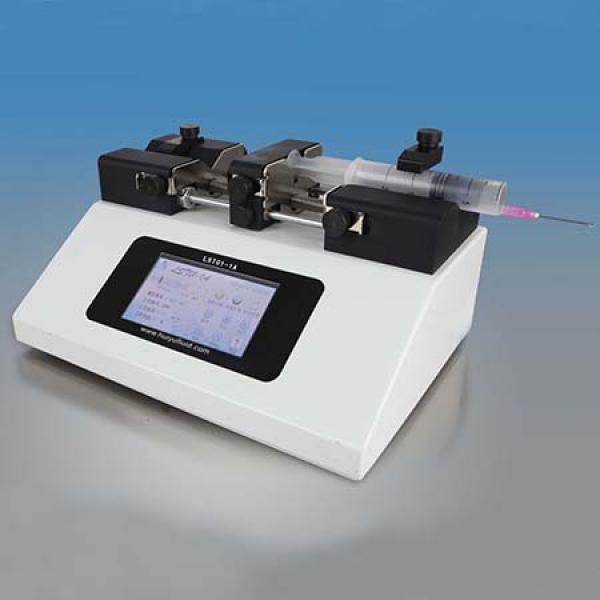

LST01-1A micro volume syringe pump

$1299.00

Specification

LST01-1A

LST01-1A micro volume touch screen syringe pumps is single channel syringe pump which is mainly used in bio-laboratory. The acceptable syringe specification is from 10 μL to 10 mL. Suitable for high accuracy and small flow rate liquid transferring.

Technical specification

Syringe pump operating modes: push-pull mode

number of syringe:1

Maximum stroke:78mm

Stroke Resolution:0.156μm

Linear velocity range:5μm/min-65mm/min(flow=Line speed×Sectional area of the syringe)

Line speed adjustment resolution:5μm/min

Stroke control accuracy:error≤±0.5%(stroke≥30% of the maximum stroke)

Rated linear thrust:>90N

Option of syringe:the main syringe models of major manufacrurers for option

Syringe setting:can input the diameter of syringe directly

Flow calibration: more accurate flow of liquid by calibration

Operating parameters setting:dispensing volume and time etc

Parameter to be displayed:volume,flow,line speed

Power off memory:can select if work as the previous status before power off when re-powered

Signal output:2 way OC gate signal output to indicate start/stop status.

Control signal input:2 way start/stop control terminal,1 way go down to control start/sotp by triger signal,

 1way TTL level signal to control start/stop

commuication interface:RS485

power supply:AC 90V-260V/15W

Suitable temperature:0℃-40℃

Suitable humidity:relative humidity<80%

Measurements:280×210×140(mm)
Weight:3.6kg

Function and Features of LST01-1A
Syrige diameter input:can select syringe in list or input the data of diameter directly.

Userfriendly manu:Large LCD screen

Power off memory: 1.EEPROM save the set parameters after power, no need to re-set. 2. Under flow mode when power is restored

  can continue to operate according to set parameters after power-up or stop

Jam protection function: When the working process of advancing the syringe pump mechanism is blocked, injection pump will stop

  advancing mechanism work issued whistle alarm

RS485 communication with host PC

Exteral control:input / output control function

Flow calibration: more accurate flow of liquid by calibration

Syringe protection function:By adjusting the position of the stopper can prevent damage to the syringe

Other parameters of  LST01-1A

ModelSuitable syringe

Inner diameter of syringe

(mm)

Flow rate(μl/min-ml/min)
LST01-1A10μl0.500.001-0.0128
25μl0.800.0025-0.0327
50μl1.100.0048-0.0618
100μl1.600.0101-0.1307
250μl2.300.0208-0.2701
500μl3.250.0415-0.5392
1ml4.720.0875-1.1373
2ml9.000.3181-4.1351
5ml13.100.6739-8.7608
10ml16.601.0821-14.068
20ml19.001.4176-18.429
30ml23.002.0774-27.006
60ml29.143.3346-43.349
