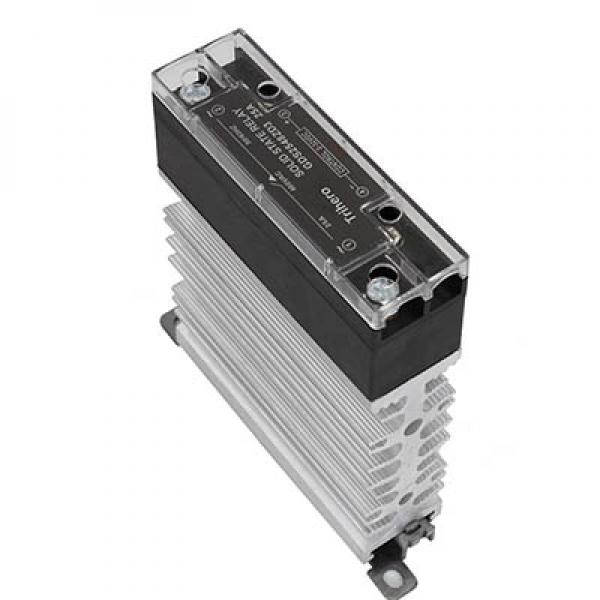

Single phase slim solid state relay

$9.00

Specification

Single phase Slim body SSR

DC control AC
Input
Control voltage range: 3-32VDC(code: D3)
Max input current: 12mA
Must operation voltage: 2.8VDC
Must release voltage: 1.5VDC
Output
Load voltage range: 24-480VAC
Peak voltage: 800V
Load current: 10A or 25A
Max off-state leakage current: 2mA
Max on-state voltage drop <= 1.5V
The solid state relay is coming with heatsink installed, size: 80.3mm*24.3mm*104
