48V 220W to 800W 86BLS BLDC Motor

86BLS-220W

86BLS-314W

86BLS-440W

86BLS-565W

86BLS-656W

86BLS-800W

Size:: 48V_3000RPM
Weight:: 1.800Kgs

Size:: 48V_3000RPM
Weight:: 2.900Kgs

Size:: 48V_3000RPM
Weight:: 2.800Kgs

Size:: 48V_3000RPM
Weight:: 3.500Kgs

Size:: 48V_3000RPM
Weight:: 4.000Kgs

Size:: 48V_3000RPM
Weight:: 4.500Kgs

$59.00

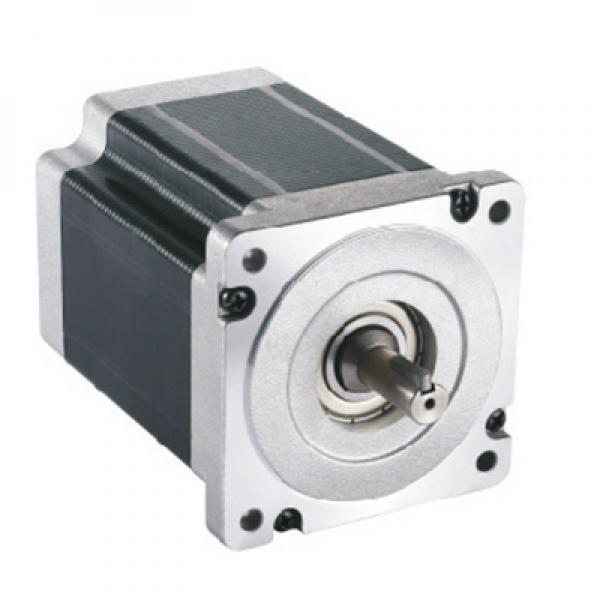

86mm Brushless DC Motor

48V 565W BLDC Motor
Frame type: square
Winding type: star
Hall effect angle: 120 degree
Number of poles: 4 or 8
Number of phases: 3
Rated voltage: 48VDC
Rated speed: 3000RPM
Rated torque: 1.8N.m
Rated current: 14.8Amps
Motor length: 105mm
86 bldc motor
Wiring diagram to BLDC Motor Driver, 5 wires hall sensor cable and 3 wires motor cable.
BLDC Motor Wiring Diagram
