Closed-loop stepper driver for NEMA34 servo stepper

$68.00 $65.00

Specification

CLD86H
CLD808H

Closed-loop stepper motor driver for NEMA34

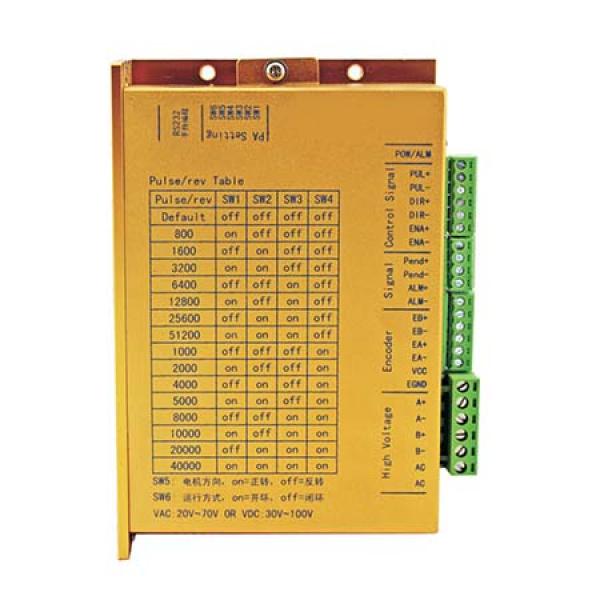

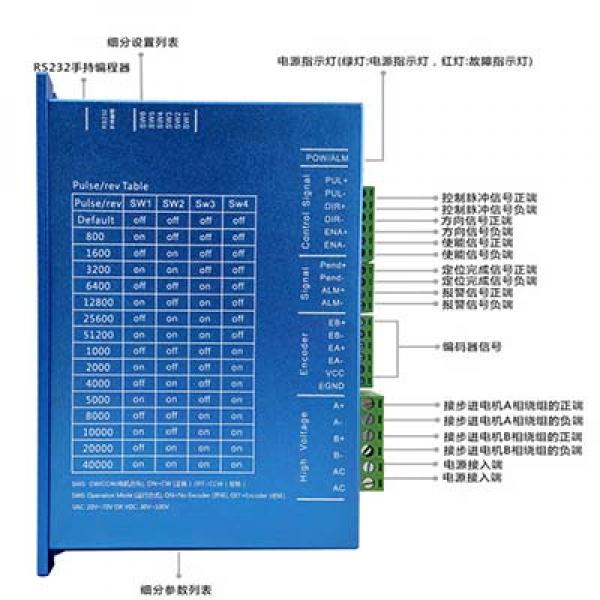

CLD86H 1200RPM
1. Voltage input range: VAC: 20 ~ 70V OR VDC: 30 ~ 100V
2. Maximum peak current: 6A
3. Subdivision range: the default 4000 / rev, through the debug board can be set to any subdivision (200-51200)
4. Pulse limit frequency: 200KHZ
5. Signal input: pulse, direction and enable signal
6. Output signal: in place signal and fault output signal
7. Motor encoder feedback: AB differential input
8. Closed-loop vector control to ensure that the motor high-speed large torque output, while ensuring that the motor does not lose step
9. With over-voltage, over-current, tracking error tolerance and other protection functions

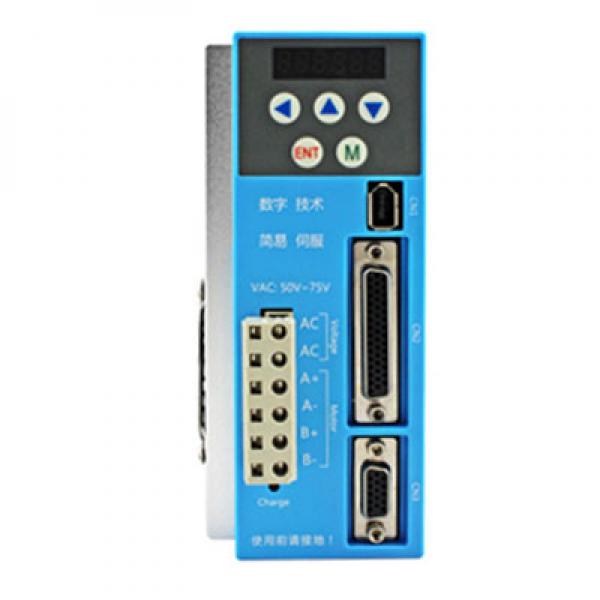

CLD808H 900-1500RPM
1. Voltage input range: 50V ~ 80VAC
2. Maximum peak current: 8A
3. Subdivision range: 200 ~ 51200ppr
4. Signal input: differential / single-ended, pulse / direction
5. Impulse response maximum frequency: 200KHZ
6. External digital debugging panel for easy parameter setting and monitoring
7. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
8. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring the motor does not lose step, with over-voltage, over-current, tracking error tolerance
nema34 servo stepper
