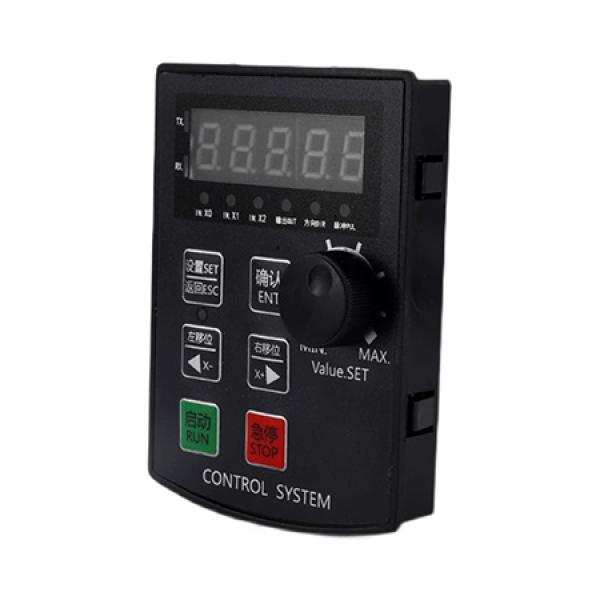

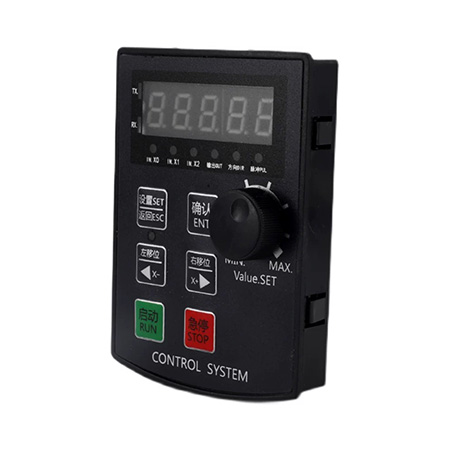

Motor controller pulse generator
The Motion Controller is a versatile and user-friendly control module designed for a range of applications. It's an ideal solution for anyone needing precise and reliable control over stepper and servo motors.
Key Features and Benefits
Fixed-Mode Operation: Instead of complex programming, this module offers several built-in, fixed operation modes. This allows you to quickly select the right trajectory for your motor, simplifying setup and operation.
Customizable Settings: Adjust key parameters like distance, speed, delay, and cycle times to fit your specific needs. The controller also features a power-down save function, ensuring your settings aren't lost when the power is off.
Flexible Integration: This controller can function as a standalone unit or integrate seamlessly with other systems as a third-party module. It's perfect for bridging gaps in motor output shafts, offering added functionality to existing setups.
Broad Application: From industrial automation and small mechanical equipment to automated painting and indexing tools, this controller is a great fit for a wide variety of industrial and hobbyist projects.
Compact & Reliable: Built with precision and a compact design, this module delivers stable performance and durability, ensuring it stands up to demanding applications.
Technical Specifications
Item Type: Motor Motion Controller pulse generator

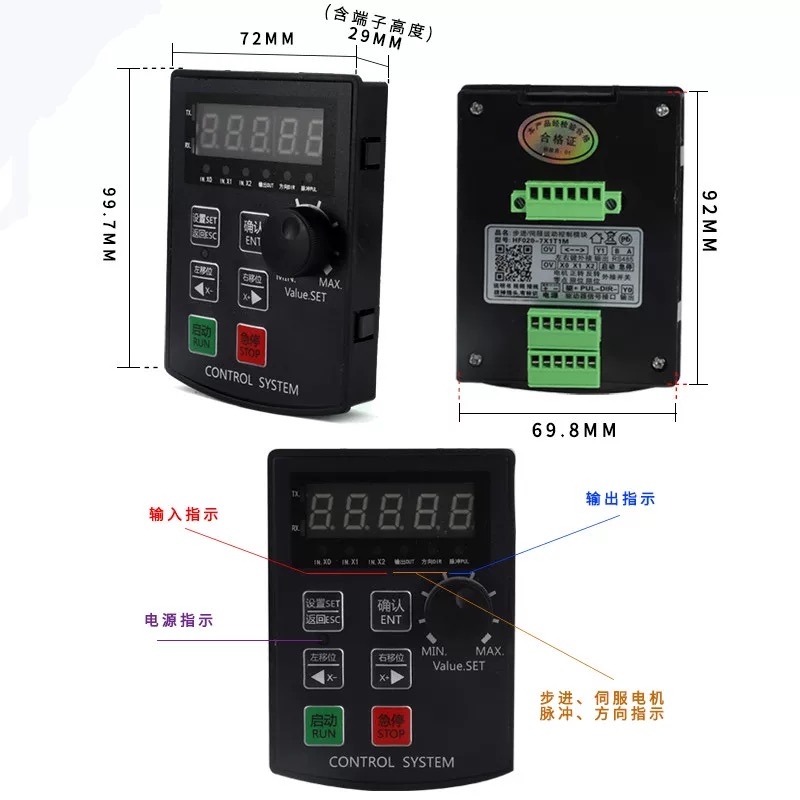

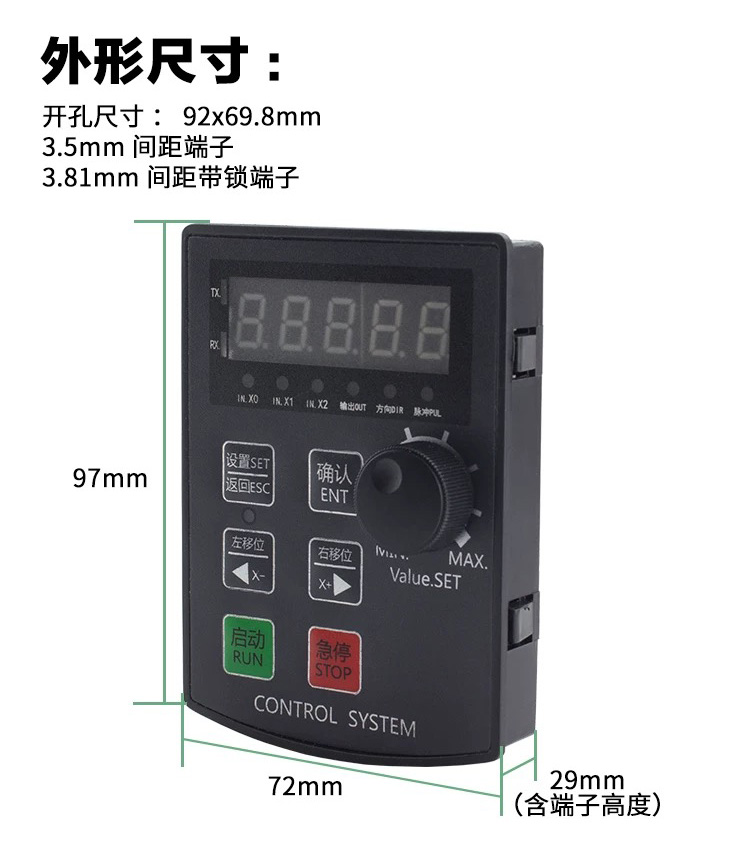

Dimensions (LxWxH): 99.7 x 72 x 17 mm
Screen: 5-digit high-light digital tube
Operating Temperature: -5℃ to 60℃ (non-condensing)
Operating Voltage: DC 12-24V (>1A power supply)
Output: 2 outputs, 0V output voltage

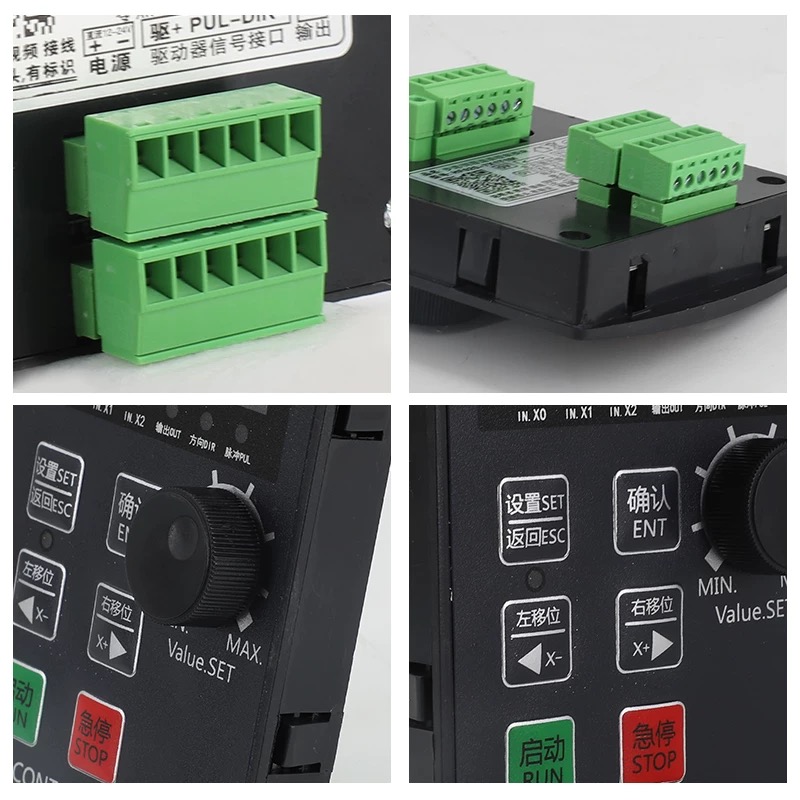

Inputs: 7 inputs, 0V as the valid signal
Motor Pulse Voltage: 24V collector (compatible with 5-24V drivers)
Motor Pulse Frequency: 85K Hz
Mounting Dimensions (LxW): 92 x 69.8 mm
