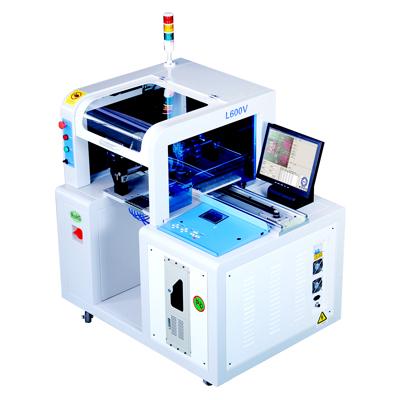

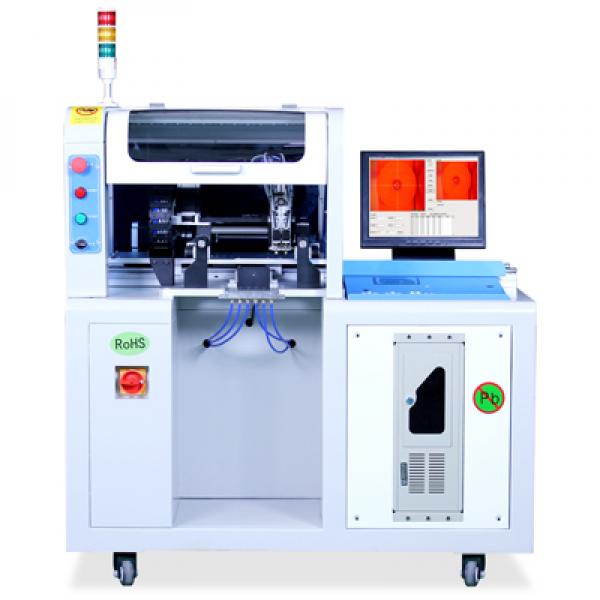

LED strip dual-head PnP Machine 600

$6799.00

Specification

T15-L600-L2

Description:
Automatic feeding.
Double reclaimer.
Computer vision correction control.
SMD range: 0402,0603,0805,1206, Diodes, transistors, SOT.
0-360 ° angle element at any angle, synchronous rotary motion
Visual system automatically recognizes the correction on the fly, automatically fill parts High-speed industrial vision camera HD CCD

Technical Parameter
Maximum board area 615 × 265mm stud heads
XY movement range 432 × 515mm
Z axis maximum movement range 0-360 ° angle 20mm
Placement speed range 4500- 5500/h
Positioning accuracy 0.01mm
Nozzle buffering range 4.5
Power 220V, 50Hz
Compressed air Compressed air 0.5-0.6Mpa
Average power 800W
Feida belt feeders 8,12,16,24mm
Number of feeders feed station 6
Visual display 15-inch color HD display
