6090 CNC CO2 laser engraving machine

80W 6090
130W 6090


Chat Online

CO2 laser engraving machine

6090 CNC engraving machine marking machine, we have complete model of 1390, 1325, 4060, 6090, 1610, 1810, Color screen offline.
Laser type CO2 laser tube
USB 2.0 interface standard
Laser power 80W
Minimum shaping character English 0.8mm
Total power <300W
Honeycomb platform lifting platform
Resolution 1000DPI
Lifting Range 0-300mm
Engraving speed 0-30000mm / min
Cutting speed 0-3600mm / min
Targeting red light positioning
Rotary fixture 10-150 * 600mm
Support Software coreldraw
Pure circulating water cooling
Laser power 80W
Operating voltage 110 / 220v 50 / 60hz
Working area 60cmx90cm
Honeycomb platform work platform
Platform size 250mm lift
Platform lifting mode manual / automatic
Maximum engraving speed 400mm / s
Maximum cutting speed 50mm / s
The minimum size sculpture man 2mm, letter 1mm
Accuracy 0.00125mm
Cutting thickness 0-15mm Control dsp
The communication interface usb
System Environment windows xp win7 / 8
Supported formats bmp, plt ,, cdr, dxf 256
color layering output support 360-degree slope carving Support Work Offline
Support Cooling water 5 ℃ -35 ℃
Weight 140kg

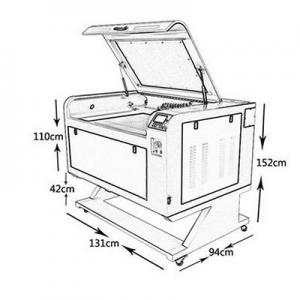

Machine size 1385mmx740mmx640mm
Packing Size 148x108x118cm
Positioning red light positioning Digital Subdividing drive mode
Stepper motor 42
Laser tube type Hermetic and detached co2 l
Applicable industries advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry Applicable materials Wood, bamboo, jade, marble, glass, crystal, plastic, clothing, paper, leather, rubber, ceramic, glass, trademarks, and other non-metallic materials Timing belt rollers Closed case design 3mm steel body composition

If you want to match Chiller or rotator, please write us for quote.
