B130MXL,B131MXL,B134MXL,B135MXL,B136MXL,B138MXL or B139MXL endless belt

$0.25

Specification

B130MXL-6
B130MXL-3
B131MXL-6
B131MXL-3
B134MXL-6
B134MXL-3
B135MXL-6
B136MXL-3
B136MXL-6
B138MXL-3
B138MXL-6
B139MXL-6
B139MXL-3
B135MXL-3

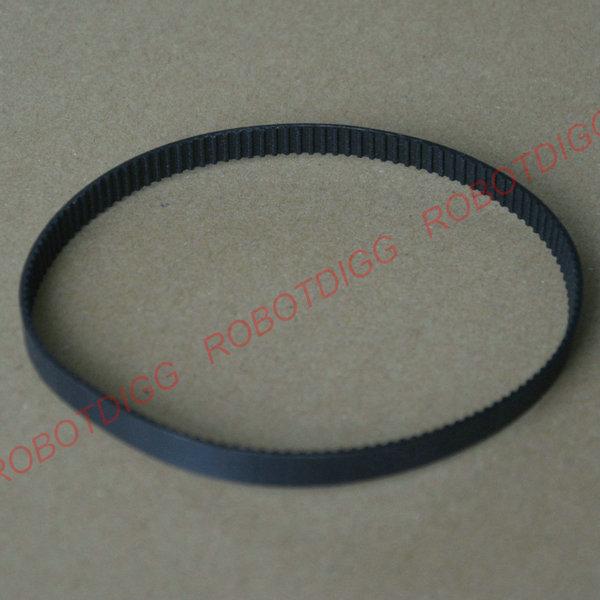

MXL Belt, Closed-loop, 264.160mm length, 130 teeth, 6mm width

Tooth Profile: MXL Profile
Material: Neoprene Rubber with Fiberglass Reinforced
Color: Black
Pitch: 2.032mm
Tooth Number: 130 (B130MXL)
Length: 264.160mm
Width: 6mm
Type: Closed-loop
Quantity: 1 piece

MXL Belt, Endless, 266.192mm length, 131 teeth, 6mm width

Tooth Number: 131 (B131MXL)
Length: 266.192mm

MXL Belt, Endless, 272.288mm length, 134 teeth, 6mm width

Tooth Number: 134 (B134MXL)
Length: 272.288mm

MXL Belt, Endless, 274.320mm length, 135 teeth, 6mm width

Tooth Number: 135 (B135MXL)
Length: 274.320mm

MXL Belt, Endless, 282.448mm length, 139 teeth, 6mm width

Tooth Number: 139 (B139MXL)
Length: 282.448mm


MXL-6 Closed-loop Belt Price Ref. List
B-MXL-width Length (mm) B-MXL-width Length (mm) B-MXL-width Length (mm)
B45MXL-6 91.440  B95MXL-6 193.040  B135MXL-6 274.320
B47MXL-6 95.504  B96MXL-6 195.072  B139MXL-6 282.448
B49MXL-6 99.568  B97MXL-6 197.104  B140MXL-6 284.480
B52MXL-6 105.664  B98MXL-6 199.136  B142MXL-6 288.544
B53MXL-6 107.696  B100MXL-6 203.200  B144MXL-6 292.608
B54MXL-6 109.728  B101MXL-6 205.232  B145MXL-6 294.640
B55MXL-6 111.760  B102MXL-6 207.264  B150MXL-6 304.800
B56MXL-6 113.792  B103MXL-6 209.296  B151MXL-6 306.832
B57MXL-6 115.824  B104MXL-6 211.328  B155MXL-6 314.960
B58MXL-6 117.856  B105MXL-6 213.360  B156MXL-6 316.992
B59MXL-6 119.888  B106MXL-6 215.392  B158MXL-6 321.056
B60MXL-6 121.920  B107MXL-6 217.424  B170MXL-6 345.440
B61MXL-6 123.952  B108MXL-6 219.456  B171MXL-6 347.472
B66MXL-6 134.112  B109MXL-6 221.488  B172MXL-6 349.504
B67MXL-6 136.144  B110MXL-6 223.520  B175MXL-6 355.600
B68MXL-6 138.176  B111MXL-6 225.552  B180MXL-6 365.760
B71MXL-6 144.272  B112MXL-6 227.584  B187MXL-6 379.984
B72MXL-6 146.304  B113MXL-6 229.616  B190MXL-6 386.080
B73MXL-6 148.336  B114MXL-6 231.648  B194MXL-6 394.208
B75MXL-6 152.400  B115MXL-6 233.680  B195MXL-6 396.240
B76MXL-6 154.432  B116MXL-6 235.712  B200MXL-6 406.400
B77MXL-6 156.464  B117MXL-6 237.744  B221MXL-6 449.072
B78MXL-6 158.496  B118MXL-6 239.776  B225MXL-6 457.200
B79MXL-6 160.528  B119MXL-6 241.818  B230MXL-6 467.360
B80MXL-6 162.560  B120MXL-6 243.840  B246MXL-6 499.872
B82MXL-6 166.624  B121MXL-6 245.872  B300MXL-6 609.600
B84MXL-6 170.688  B122MXL-6 247.904  B332MXL-6 674.624
B85MXL-6 172.720  B123MXL-6 249.936  B333MXL-6 676.656
B86MXL-6 174.752  B124MXL-6 251.968  B350MXL-6 711.200
B87MXL-6 176.784  B125MXL-6 254.000  B360MXL-6 731.520
B88MXL-6 178.816  B126MXL-6 256.032  B397MXL-6 806.704
B89MXL-6 180.848  B127MXL-6 258.064  B408MXL-6 829.056
B90MXL-6 182.880  B128MXL-6 260.096  B450MXL-6 914.400
B91MXL-6 184.912  B130MXL-6 264.160  B453MXL-6 920.496
B92MXL-6 186.944  B131MXL-6 266.192  B680MXL-6 1381.760
B93MXL-6 188.976  B132MXL-6 268.224
B94MXL-6 191.008  B134MXL-6 272.288
Further More, welcome to write us email for quote
